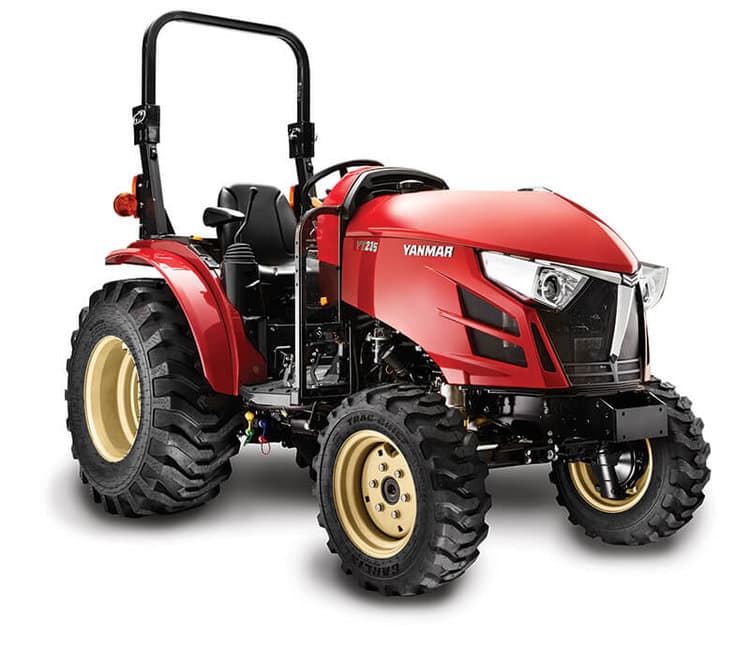

Yanmar YT235

Last Updated: June 2024

Overview

The Yanmar YT235 is a compact utility tractor, part of the YT2 series. This model has been in production since 2016 and is designed with versatility and functionality in mind for a wide range of tasks. Powered by a Yanmar 3TNV88 diesel engine with a liquid-cooled system, it ensures reliability and efficiency. The engine has a displacement of 100.1 cubic inches and provides a power output of 34.2 horsepower at 2800 RPM. The tractor features a hydrostatic transmission with infinite (three-range) forward and reverse gears, accommodating various speed requirements. Equipped with both rear (540 rpm) and middle (2013 rpm) PTO speeds, it caters to different attachment needs. For comfort and safety, it offers two operator station options: a two-post ROPS or an optional cab. With power steering, wet disc brakes, and a three-point hitch Category I, this tractor is designed for convenience and handling. The YT235 boasts an operational weight range of 2558 to 2910 pounds, depending on the configuration.
Show more...

Key Specifications

Category: Utility

Power Output: 34.2

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: ROPS: 2558 | Cab: 2910

Fuel Type: Diesel

Yanmar YT235 vs. Similar Tractors

Power Output
Below Average
Greater than 30% of similar tractors.
Hitch Capacity
Poor
Greater than 4% of similar tractors.
Operating Weight
Above Average
Greater than 83% of similar tractors.

Technical Specifications

Engine

Manufacturer
Yanmar
Model
3TNV88
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural aspirated
Cylinders
3
Displacement (ci)
100.1
Bore (in)
3.39
Stroke (in)
3.54
Rated RPM
2800
Power Output (hp)
34.2

Transmission

Type
Hydrostatic
Forward Gears
-
Reverse Gears
-
Total Gears
Infinite (3-range) forward and reverse

Dimensions

Length (in)
116.9
Width (in)
58.3
Height (in)
ROPS: 89 | Cab: 83.5
Operating Weight (lb)
ROPS: 2558 | Cab: 2910

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
Rear: 540
PTO Speed 2 (rpm)
Middle: 2013
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag, Lawn/turf, Industrial
Manufacture - End Year
-
Hitch Type
-
Hitch Category
I
Hitch Position
-
Hitch Capacity (lb)
2,205 lbs
Operator Station Type
Two-post ROPS or Cab (optional)
Starter Type
Electric
Brake Type
Wet disc
Hydraulic System Type
-
