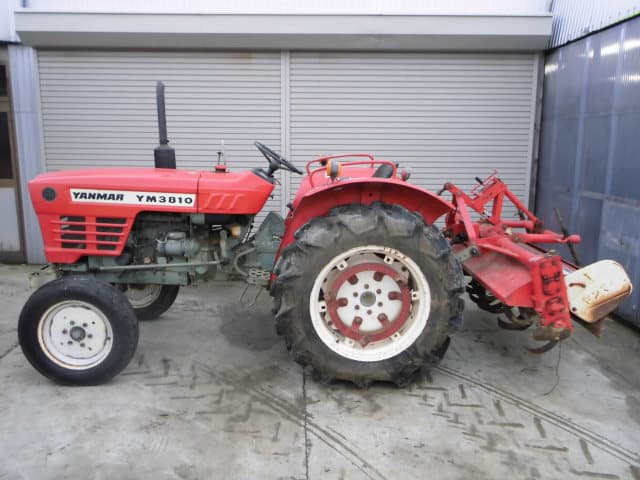

Yanmar YM3810

Last Updated: September 2024

Overview

The Yanmar YM3810 is a utility tractor designed for various farm tasks. It's a 2WD model, which means it has two wheels that drive the tractor forward. The tractor has a power shift transmission, making it easy to change gears while working.

Under the hood, the YM3810 has a Yanmar 3T84T engine. This engine is liquid-cooled and runs on diesel fuel. It's turbocharged, which helps it produce more power. The engine has 3 cylinders and can generate 38 horsepower. While the engine size is below average compared to other tractors, its power output is about average. The tractor weighs 2,921 pounds, which is on the lighter side for its class. This makes it easier to move around and less likely to compact soil.

The YM3810 measures 122 inches long, 58 inches wide, and 77 inches tall. These compact dimensions make it suitable for working in tight spaces or smaller fields. Yanmar is known for making reliable, efficient tractors, and the YM3810 continues this tradition with its practical design and features.
Show more...

Key Specifications

Category: Utility

Power Output: 38 hp (28.3 kW)

Transmission: Power shift

Drive Type: 2WD

Operating Weight: 2921 lb (1325 kg)

Fuel Type: Diesel

Yanmar YM3810 vs. Similar Tractors

Power Output

The Power Output for the Yanmar YM3810 is Average. It is greater than 35% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 4.7K+ tractors in our database)

Operating Weight

The Operating Weight for the Yanmar YM3810 is Below Average. It is greater than 25% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 4.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Yanmar YM3810 is Below Average. It is greater than 19% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Yanmar
Model
3T84T
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
3
Displacement
91 ci (1.5 L)
Bore
3.31 in (84.0 mm)
Stroke
3.54 in (90.0 mm)
Power Output
38 hp (28.3 kW)

Transmission

Type
Power shift

Drivetrain

Chassis
4x2 2WD
Drive Type
2WD
