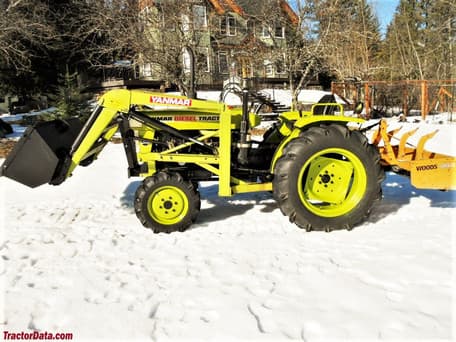

Yanmar YM2402

Last Updated: June 2024

Overview

The Yanmar YM2402 is a utility tractor that was part of the YM02 series and produced by Yanmar from 1982 to 1983. This model comes equipped with a Yanmar 3T84H diesel engine offering 23.7 horsepower, liquid-cooling, and a displacement of 87.2 cubic inches. It features a traditional gear transmission with a substantial number of gears, providing it 15 forward and 5 reverse speeds, suitable for various tasks. It has an operating weight of 2711 pounds, with dimensions measuring 113 inches in length, 50 inches in width, and 73 inches in height. The absence of specific details about its steering system, wheel configuration, tire sizes, and hitch capacities implies that the user should refer to the original documentation for these specifics, or potentially seek a similar model's data for approximate references.
Show more...

Key Specifications

Category: Utility

Power Output: 23.7

Transmission: Gear

Operating Weight: 2711

Fuel Type: Diesel

Yanmar YM2402 vs. Similar Tractors

Power Output
Below Average
Greater than 15% of similar tractors.
Operating Weight
Below Average
Greater than 22% of similar tractors.

Technical Specifications

Engine

Manufacturer
Yanmar
Model
3T84H
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
3
Displacement (ci)
87.2
Bore (in)
3.31
Stroke (in)
3.39
Rated RPM
2500
Power Output (hp)
23.7

Transmission

Type
Gear
Forward Gears
15
Reverse Gears
5
Total Gears
-

Dimensions

Length (in)
113
Width (in)
50
Height (in)
73
Operating Weight (lb)
2711

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
1983
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
