Yanmar YM1900

Last Updated: June 2024

Overview

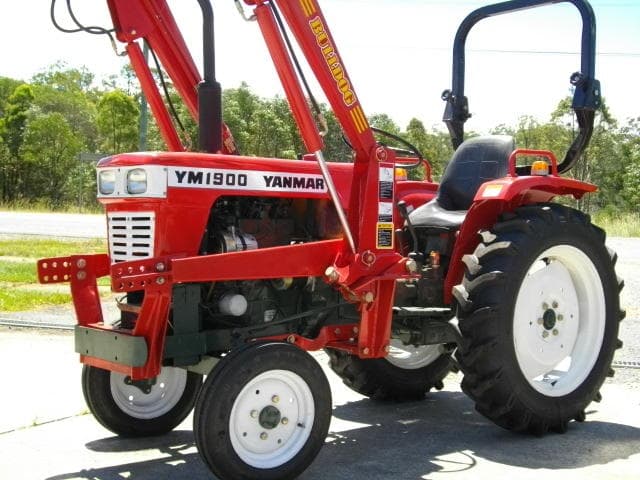

The Yanmar YM1900 is a tractor that's powered by a Yanmar 2TR19 diesel engine. This engine delivers 18.7 horsepower with a displacement of 64 cubic inches and operates at a rated RPM of 2300. The tractor features a gear-type transmission with 8 forward gears and 2 reverse gears. With its liquid-cooled engine, and 1631 pounds of operating weight, the tractor appears to be designed for a variety of tasks and can be assumed to fall into a general utility category. It's equipped with Ag front and rear tires, featuring a wheelbase of 58.7 inches and a ground clearance of 13.1 inches, which offers decent maneuverability and stability. Dimensions of the YM1900 are given as 93 inches in length, 43.9 inches in width, and 72.8 inches in height. While the specific type of steering, hitch, and other operational features are not provided, the YM1900's build suggests that it is a capable machine for a range of agricultural purposes.
Show more...

Key Specifications

Power Output: 18.7

Transmission: Gear

Operating Weight: 1631

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Yanmar
Model
2TR19
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
2
Displacement (ci)
64
Bore (in)
-
Stroke (in)
-
Rated RPM
2300
Power Output (hp)
18.7

Transmission

Type
Gear
Forward Gears
8
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
93
Width (in)
43.9
Height (in)
72.8
Operating Weight (lb)
1631

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
