Yanmar YM1820

Last Updated: June 2024

Overview

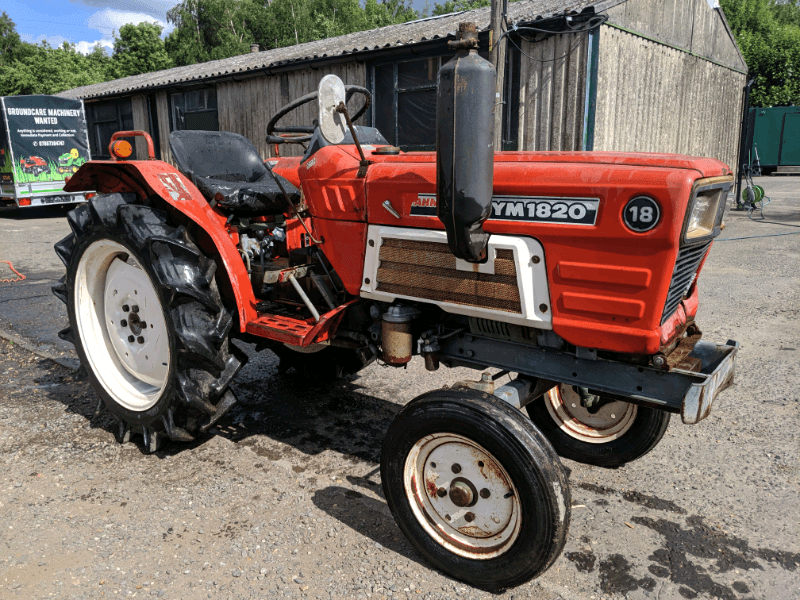

The Yanmar YM1820 tractor was produced between 1982 and 1983 as part of the YM20 Series. It is powered by a Yanmar 3T80U-NB diesel engine which offers 18 horsepower (13.4 kW). The engine displacement is 78.1 cubic inches, featuring a liquid cooling system, and operates at a rated RPM of 2400. This model features two transmission options; a partial power shift with 9 forward and 3 reverse gears and an additional creeper gear option providing 12 forward and 4 reverse gears. The YM1820 measures 104 inches in length, 45 inches in width, and 70 inches in height with an operating weight of 2314 pounds. The tractor's capabilities and specifics regarding hitch system, hydraulic systems, PTO, and starter types remain unspecified in the provided data.
Show more...

Key Specifications

Power Output: 18

Transmission: Partial power shift, Creeper

Operating Weight: 2314

Fuel Type: Diesel

Image Gallery

Yanmar YM1820 Tractor Yanmar YM1820 Tractor Yanmar YM1820 Tractor Yanmar YM1820 Tractor Yanmar YM1820 Tractor Yanmar YM1820 Tractor Yanmar YM1820 Tractor Yanmar YM1820 Tractor Yanmar YM1820 Tractor Yanmar YM1820 Tractor

Technical Specifications

Engine

Manufacturer
Yanmar
Model
3T80U-NB
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
3
Displacement (ci)
78.1
Bore (in)
3.15
Stroke (in)
3.35
Rated RPM
2400
Power Output (hp)
18

Transmission

Type
Partial power shift, Creeper
Forward Gears
12
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
104
Width (in)
45
Height (in)
70
Operating Weight (lb)
2314

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
1983
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
