Yanmar YM1802

Last Updated: June 2024

Overview

The Yanmar YM1802 is a compact utility tractor that was in production from 1982 until 1983. It comes with a 4x2 2WD chassis configuration. This tractor is powered by a 3-cylinder, liquid-cooled Yanmar 3T80U-NB diesel engine with an 18 horsepower rating at 2400 RPM and a displacement of 78.1 cubic inches. Transmission options include a basic 9-speed gear system along with a creeper transmission providing 12 forward and 4 reverse gears, allowing for a wide range of speed selections suitable for various tasks. The device starts electrically with a 12-volt starter. The YM1802 offers solid strength with a compact chassis, measuring 104 inches in length, 45 inches in width, and 70 inches in height, with an operating weight of 2260 pounds.

Key Specifications

Category: Utility

Power Output: 18

Transmission: Gear with optional creeper

Drive Type: 2WD

Operating Weight: 2260

Fuel Type: Diesel

Image Gallery

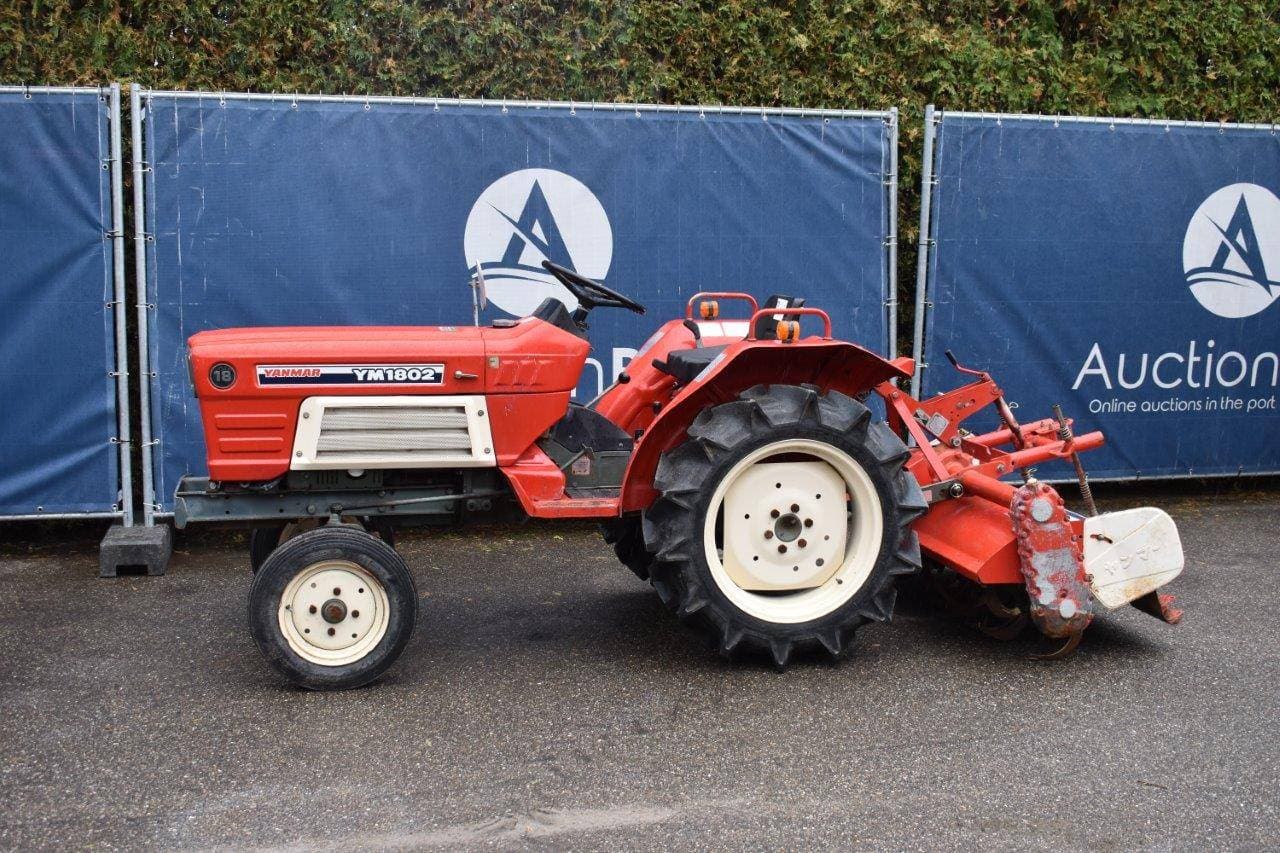

Yanmar YM1802 Tractor

Yanmar YM1802 vs. Similar Tractors

Power Output

Poor

Greater than 7% of similar tractors.

Operating Weight

Below Average

Greater than 18% of similar tractors.

Technical Specifications

Engine

Manufacturer: Yanmar
Model: 3T80U-NB
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally aspirated
Cylinders: 3
Displacement (ci): 78.1
Bore (in): -
Stroke (in): -
Rated RPM: 2400
Power Output (hp): 18

Transmission

Type: Gear with optional creeper
Forward Gears: 12
Reverse Gears: 4
Total Gears: -

Dimensions

Length (in): 104
Width (in): 45
Height (in): 70
Operating Weight (lb): 2260

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: 1983
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric (12 volts inferred from "Engine - Starter volts")
Brake Type: -
Hydraulic System Type: -
