Yanmar YM1602

Last Updated: June 2024

Overview

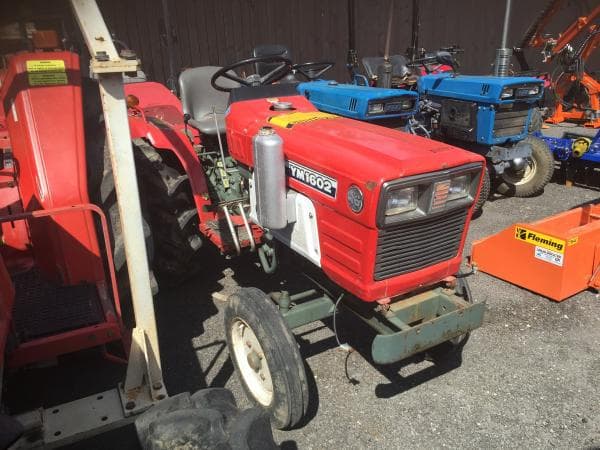

The Yanmar YM1602 is a compact utility tractor that was manufactured between 1982 and 1983. It features a durable Yanmar 3T75U three-cylinder diesel engine with a displacement of 60.7 cubic inches and an engine output of 16 horsepower. This Yanmar model boasts a manual transmission system and 2WD (two-wheel drive) on a 4x2 chassis configuration. The engine is liquid-cooled, ensuring optimal thermal management during operation. The tractor's physical dimensions include a length of 101 inches, a width of 41 inches, and a height of 69 inches, with an operating weight of 1521 pounds. This tractor is well-suited for a variety of tasks around a small farm or homestead and would be compatible with Category 3 hitch implements, details of which such as hitch type and lift capacity are not specified. The operational and maintenance information regarding this tractor would be crucial for users seeking to maximize its lifespan and performance.
Show more...

Key Specifications

Category: Utility

Power Output: 16

Transmission: Manual

Drive Type: 2WD

Operating Weight: 1521

Fuel Type: Diesel

Yanmar YM1602 vs. Similar Tractors

Power Output
Poor
Greater than 4% of similar tractors.
Operating Weight
Below Average
Greater than 12% of similar tractors.

Technical Specifications

Engine

Manufacturer
Yanmar
Model
3T75U
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
3
Displacement (ci)
60.7
Bore (in)
2.95
Stroke (in)
2.95
Rated RPM
-
Power Output (hp)
16

Transmission

Type
Manual
Forward Gears
-
Reverse Gears
-
Total Gears
-

Dimensions

Length (in)
101
Width (in)
41
Height (in)
69
Operating Weight (lb)
1521

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
1983
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
