Yanmar YM1401

Last Updated: June 2024

Overview

The Yanmar YM1401 is a compact utility tractor that features a durable and robust 4x2 2WD chassis, ideal for various small-scale agricultural tasks. It is powered by a Yanmar 3T72SB diesel engine with a displacement of 53.6 cubic inches, providing 13.8 horsepower at a rated RPM of 2400. The engine is liquid-cooled, ensuring consistent operation under heavy loads and extending longevity. With a gear transmission offering 6 forward and 2 reverse speeds, coupled with a dry disc clutch, it delivers ample power and precise control for versatile performance in diverse conditions. The tractor measures 84.8 inches in length, 38.2 inches in width, and has a height of 68.7 inches. It presents an operating weight of 1080 pounds for the 2WD version and 1168 pounds for the 4WD variant, satisfying the demands of various tasks without sacrificing maneuverability or stability.

Key Specifications

Category: Utility

Power Output: 13.8

Transmission: Gear

Drive Type: 2WD

Operating Weight: 1080 (2WD), 1168 (4WD)

Fuel Type: Diesel

Image Gallery

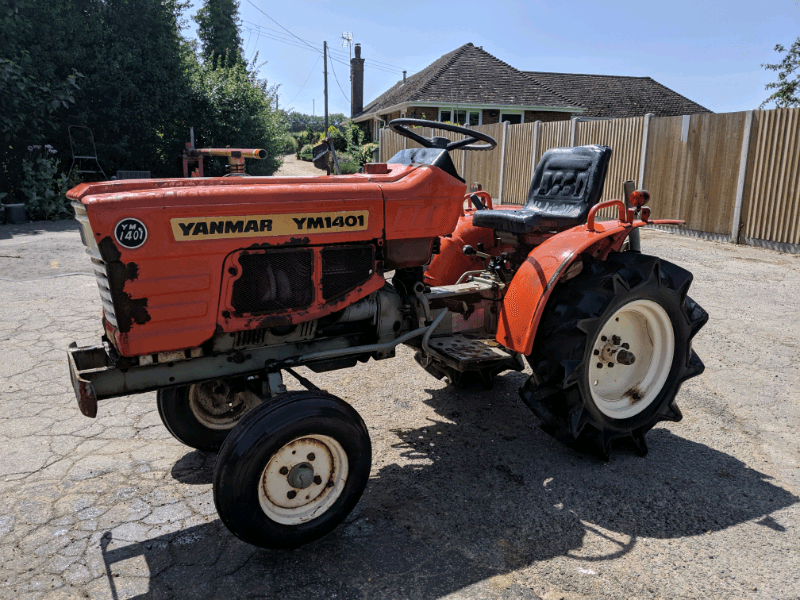

Yanmar YM1401 Tractor

Yanmar YM1401 vs. Similar Tractors

Power Output

Poor

Greater than 2% of similar tractors.

Operating Weight

Average

Greater than 64% of similar tractors.

Technical Specifications

Engine

Manufacturer: Yanmar
Model: 3T72SB
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: -
Cylinders: 3
Displacement (ci): 53.6
Bore (in): 2.835
Stroke (in): 2.835
Rated RPM: 2400
Power Output (hp): 13.8

Transmission

Type: Gear
Forward Gears: 6
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): 84.8
Width (in): 38.2
Height (in): 68.7 (2WD) Assume same for 4WD unless data contradicts
Operating Weight (lb): 1080 (2WD), 1168 (4WD)

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric (assumption based on "Engine - Starter volts: 12")
Brake Type: -
Hydraulic System Type: -
