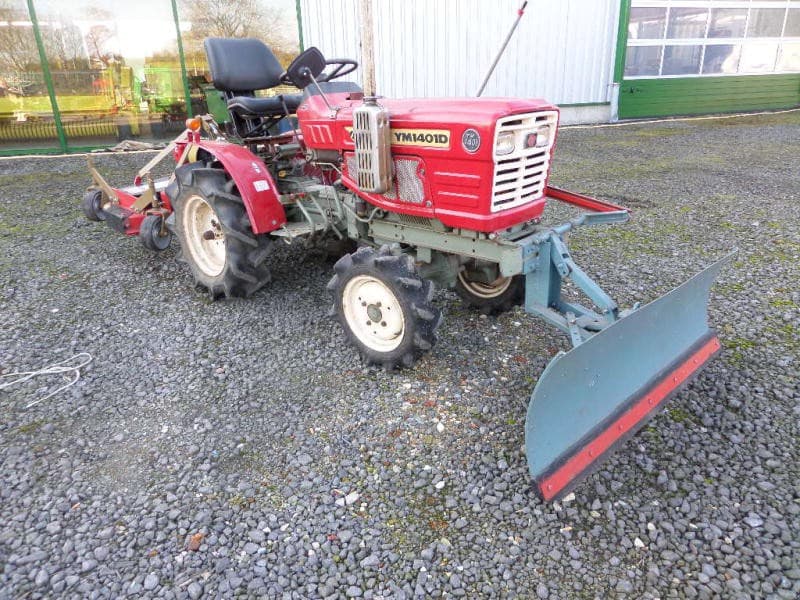

Yanmar YM140

Last Updated: June 2024

Overview

The Yanmar YM140 is a sub-compact utility tractor, offering a balance of power and agility for various agricultural tasks. Equipped with a Yanmar 2T75UA diesel engine, this tractor delivers a modest 14 horsepower with a 2-cylinder, liquid-cooled system ensuring long-term performance and reliability. Its 2WD chassis is purposed for easy maneuverability across different terrains. The tractor features a gear transmission system with 6 forward and 3 reverse gears, providing a range of operating speeds suited for multiple purposes. With a wheelbase of 53 inches and lengths measuring up to 97.5 inches, the YM140 allows for easy handling without compromising on stability. Standard agriculture tires are provided, but configurations for lawn/turf are also available, showcasing the tractor’s versatility. The build of this tractor is designed to accommodate the rigors of farm work with the operating weight for 2WD models at 1096 lbs. While the specific years of manufacture are not specified, the Yanmar YM140 establishes itself as a reliable machine with simple, straightforward functionality. The hitch system is Category I, a common size that enables various attachments to be fitted for different tasks. The operator's comfort is considered, although the details of the station type are not detailed in the provided data. Boasting an open center hydraulic system, the YM140 is capable of managing a wide array of implements, making it a robust tool for small-scale farming operations.
Show more...

Key Specifications

Category: Utility, Sub-Compact

Power Output: 14

Transmission: Gear

Drive Type: 2WD

Operating Weight: 1096 (2WD)

Fuel Type: Diesel

Yanmar YM140 vs. Similar Tractors

Power Output
Poor
Greater than 2% of similar tractors.
Operating Weight
Average
Greater than 64% of similar tractors.

Technical Specifications

Engine

Manufacturer
Yanmar
Model
2T75UA
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
2
Displacement (ci)
38.8
Bore (in)
2.95
Stroke (in)
2.83
Rated RPM
2600
Power Output (hp)
14

Transmission

Type
Gear
Forward Gears
6
Reverse Gears
3
Total Gears
-

Dimensions

Length (in)
97.5
Width (in)
38.4 (2WD)
Height (in)
48.2 (2WD steering wheel)
Operating Weight (lb)
1096 (2WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
12 (standard ag 4x2)
Front Tire Width (in)
-
Rear Tire Diameter (in)
16 (standard ag 4x2)
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag, Lawn/Turf (optional)
Manufacture - End Year
-
Hitch Type
I
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric (12 volts)
Brake Type
-
Hydraulic System Type
Open Center
