Yanmar YM1300

Last Updated: June 2024

Overview

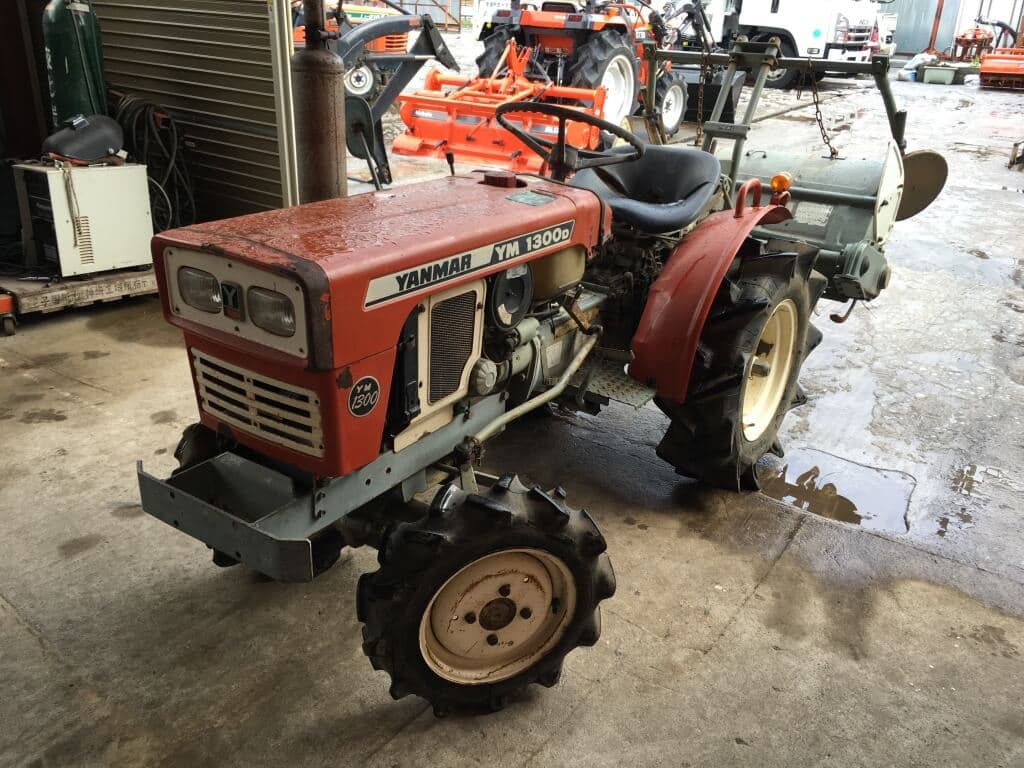

The Yanmar YM1300 is a compact utility tractor known for its reliability and versatility. Originally manufactured by Yanmar, this model is equipped with a 13 horsepower diesel engine, making it capable of handling a wide range of tasks in smaller or confined farming spaces. The liquid-cooled two-cylinder engine ensures efficient operation and durability. It has a 6-speed gear transmission with 6 forward and 2 reverse gears which accommodates various tasks that require different speeds. With its chassis configuration of 4x2 2WD, the Yanmar YM1300 provides sufficient traction and maneuverability for its class of work. The overall dimensions of length (81 inches), width (38 inches), and height (65 inches), alongside an operating weight of 1200 lbs, highlight the tractor's compact nature, suitable for tight spaces and smaller scales of farm operation. While comprehensive details on the entire specification are not available, the provided data offers a fundamental understanding of this tractor's capabilities.
Show more...

Key Specifications

Category: Utility

Power Output: 13

Transmission: Gear

Drive Type: 2WD

Operating Weight: 1200

Fuel Type: Diesel

Yanmar YM1300 vs. Similar Tractors

Power Output
Poor
Greater than 1% of similar tractors.
Operating Weight
Poor
Greater than 8% of similar tractors.

Technical Specifications

Engine

Manufacturer
Yanmar
Model
2TR13
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
2
Displacement (ci)
40.4
Bore (in)
-
Stroke (in)
-
Rated RPM
-
Power Output (hp)
13

Transmission

Type
Gear
Forward Gears
6
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
81
Width (in)
38
Height (in)
65
Operating Weight (lb)
1200

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
12 Volt
Brake Type
-
Hydraulic System Type
-
