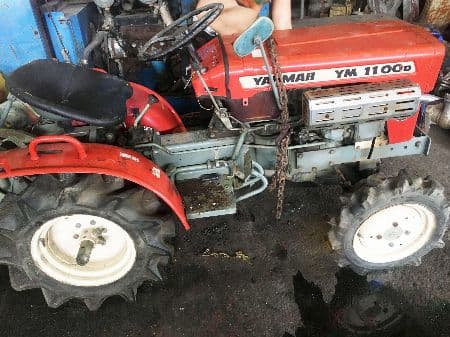

Yanmar YM1100

Last Updated: June 2024

Overview

The Yanmar YM1100 is a compact utility tractor known for its utilitarian design and straightforward functionality. It features a 2-cylinder, Yanmar 2T72 diesel engine with a displacement of 38.26 cubic inches generating an output of 11 horsepower with a liquid-cooling system to maintain engine temperature. The tractor operates with a 2WD chassis and a 6-speed gear transmission, providing it with 6 forward and 2 reverse gears, which are sufficient for various light-duty tasks around the farm. This model has a relatively low operating weight, between 992 and 1091 pounds, which makes it easier to maneuver in small spaces. The ground clearance of 9.6 inches allows for operation in diverse terrain. The tractor's size, with a length of 72 inches, a width of 35.4 inches, and a height of 45 inches, indicates its compact nature, making it an ideal machine for smaller plots of land or as a secondary tractor in a larger fleet.
Show more...

Key Specifications

Category: Utility

Power Output: 11

Transmission: Gear

Drive Type: 2WD

Operating Weight: 992 (for 2WD model)

Fuel Type: Diesel

Yanmar YM1100 vs. Similar Tractors

Power Output
Poor
Greater than 0% of similar tractors.
Operating Weight
Average
Greater than 62% of similar tractors.

Technical Specifications

Engine

Manufacturer
Yanmar
Model
2T72
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
2
Displacement (ci)
38.26
Bore (in)
-
Stroke (in)
-
Rated RPM
2700
Power Output (hp)
11

Transmission

Type
Gear
Forward Gears
6
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
72
Width (in)
35.4
Height (in)
45
Operating Weight (lb)
992 (for 2WD model)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
