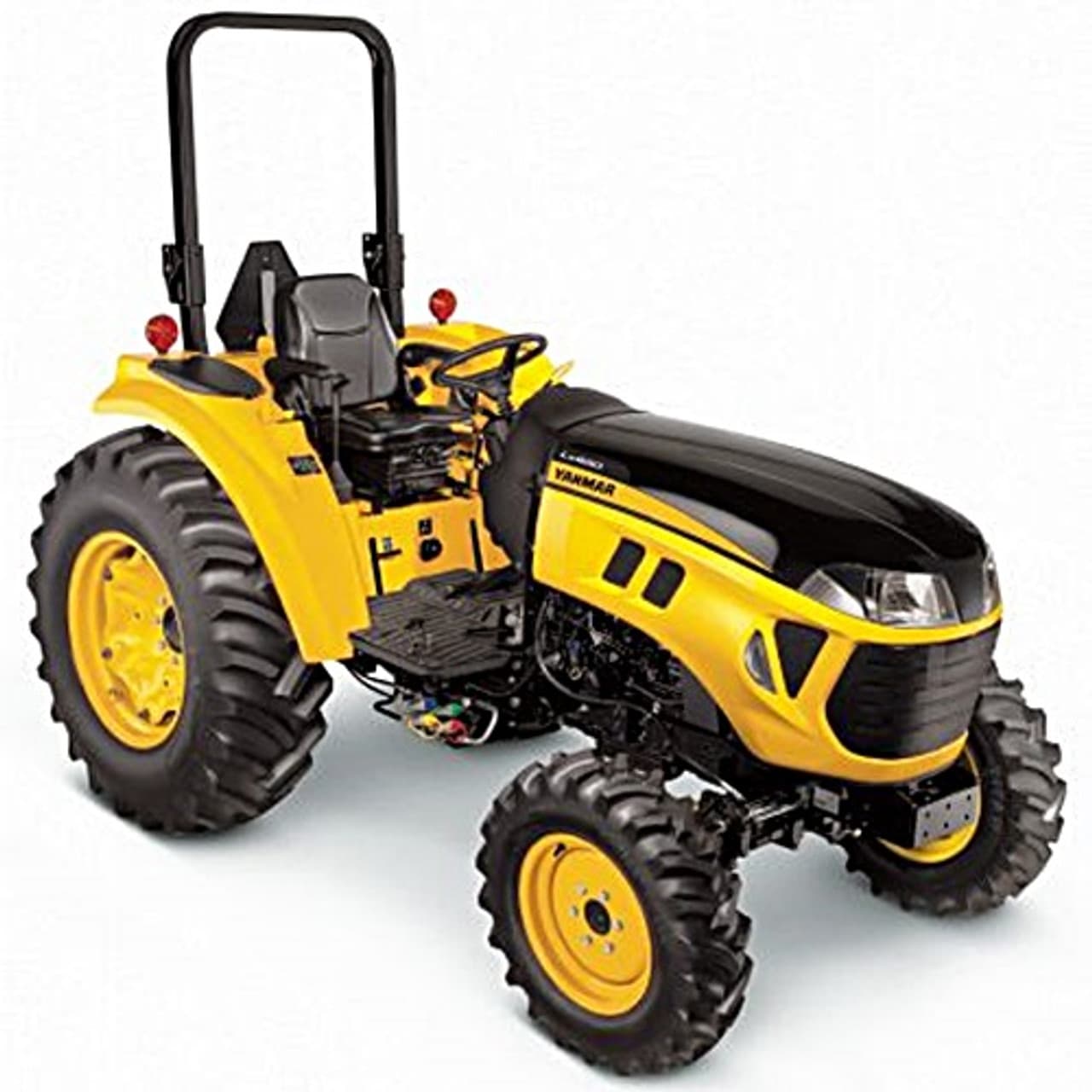

Yanmar Lx4100

Last Updated: June 2024

Overview

The Yanmar Lx4100 is a compact utility tractor well-suited to a variety of tasks for small-scale farming, landscaping, and other utility purposes. It features a 4x4 MFWD 4WD chassis configuration, providing improved traction and control across different terrains. The tractor is powered by a 41 horsepower liquid-cooled diesel engine with a displacement of 133.6 cubic inches, featuring a direct injection induction type. Its hydrostatic transmission offers an infinite range of gears (3-range), facilitating variable speed control and efficient power delivery. The Lx4100 has a weight of 3,585 pounds and is equipped with a telescopic Category 1 hitch with a lift capacity of 2,760 lbs at 24 inches behind. Its hydraulic power steering and an open-center hydraulic system supplement its versatility and ease of use. This model commenced production in 2012 and continues to meet the needs of a diverse user base looking for a reliable and capable tractor.
Show more...

Key Specifications

Category: Utility

Power Output: 41

Transmission: hydrostatic

Drive Type: 4WD

Operating Weight: 3585

Fuel Type: diesel

Yanmar Lx4100 vs. Similar Tractors

Power Output
Average
Greater than 38% of similar tractors.
Hitch Capacity
Excellent
Greater than 95% of similar tractors.
Operating Weight
Average
Greater than 31% of similar tractors.

Technical Specifications

Engine

Manufacturer
Yanmar
Model
-
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
diesel
Induction Type
direct injection
Cylinders
4
Displacement (ci)
133.6
Bore (in)
3.465
Stroke (in)
3.543
Rated RPM
2700
Power Output (hp)
41

Transmission

Type
hydrostatic
Forward Gears
-
Reverse Gears
-
Total Gears
infinite (3-range)

Dimensions

Length (in)
124
Width (in)
69.5
Height (in)
-
Operating Weight (lb)
3585

Power Take-Off (PTO)

PTO Type
Electro-hydraulic independent
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
hydraulic power
Coolant Capacity (qts)
5.7
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
24 (from "14.9-24")
Rear Tire Width (in)
14.9 (from "14.9-24")
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Telescopic Category 1
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
2760 (at 24 in. behind)
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
