Yanmar Ke-140

Last Updated: June 2024

Overview

The Yanmar Ke-140 is a compact utility tractor that is part of the KE Series. It features a 14 horsepower Yanmar diesel engine with a displacement of 40.2 cubic inches, powering a 4-wheel drive chassis with a manual collar shift transmission consisting of 8 forward and 4 reverse gears. The liquid-cooled 3-cylinder engine reaches a rated RPM of 2600, and the tractor operates with a 12-volt electrical system, including an alternator that supplies 36 amperes. This tractor is equipped with a Category 1 three-point hitch and agricultural tires sized 4.50-10 for the front and 7-16 for the rear. Additional features include a modest fuel capacity of 3.5 gallons, a turning radius of 5.6 feet, and a maximum speed of 8.1 mph. The tractor was designed with attention to maneuverability and efficiency in various agricultural tasks.

Key Specifications

Category: Utility

Power Output: 14

Transmission: Collar shift

Drive Type: MFWD 4WD

Operating Weight: 1246

Fuel Type: Diesel

Image Gallery

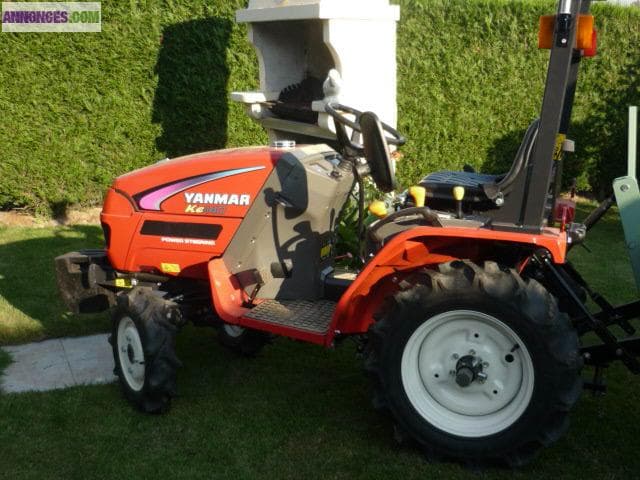

Yanmar Ke-140 Tractor

Yanmar Ke-140 vs. Similar Tractors

Power Output

Poor

Greater than 2% of similar tractors.

Operating Weight

Poor

Greater than 8% of similar tractors.

Technical Specifications

Engine

Manufacturer: Yanmar
Model: 3TN66
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally aspirated
Cylinders: 3
Displacement (ci): 40.2
Bore (in): -
Stroke (in): -
Rated RPM: 2600
Power Output (hp): 14

Transmission

Type: Collar shift
Forward Gears: 8
Reverse Gears: 4
Total Gears: 12

Dimensions

Length (in): 92.1
Width (in): 36.8
Height (in): 84.4
Operating Weight (lb): 1246

Power Take-Off (PTO)

PTO Type: Transmission driven P/T/O (SAE 1 - 3/8)
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: MFWD 4WD
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag front: 4.50-10, Ag rear: 7-16
Manufacture - End Year: -
Hitch Type: Three-Point Hitch
Hitch Category: Category 1
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric (12 volts)
Brake Type: -
Hydraulic System Type: -
