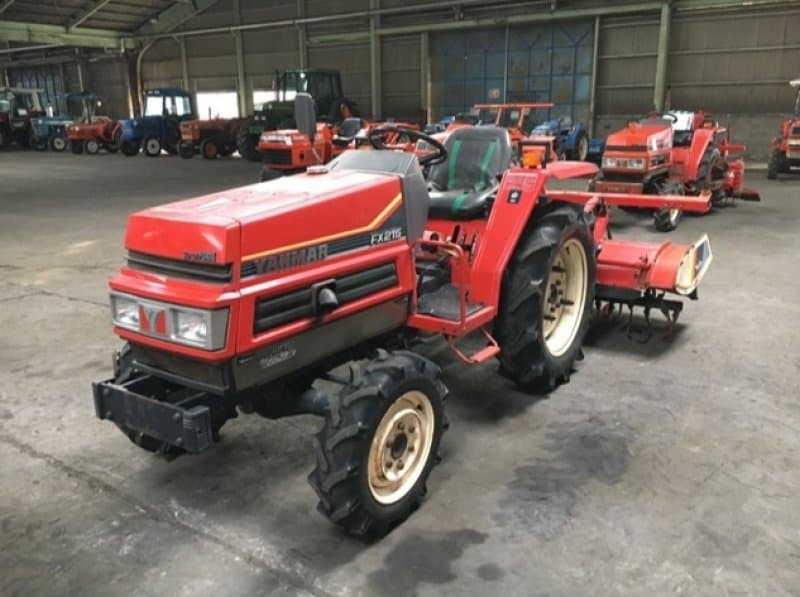

Yanmar FX215

Last Updated: June 2024

Overview

The Yanmar FX215 is a utility tractor known for its versatility in various farming applications. Equipped with a Yanmar 3TNB82 diesel engine, this tractor delivers a power output of 20.7 horsepower with a displacement of 85.1 cubic inches. The liquid-cooled, three-cylinder engine ensures reliable performance and is paired with a partial power shift transmission that offers 9 forward and 3 reverse gears, allowing for a range of speed options for different tasks. It operates at a rated RPM of 2500. This Yanmar model comes in two configurations: a 2WD version with 2050 lbs operating weight and a 4WD version weighing 2238 lbs. The dimensions are 111.8 inches in length, 48.8 inches in width, and 56.9 inches in height, providing a compact and manageable size for various farm operations. Details such as tire sizes and types, as well as the ground clearance that varies slightly between the 2WD and 4WD models, are specified to cater to agricultural needs.
Show more...

Key Specifications

Category: Utility

Power Output: 20.7

Transmission: Partial power shift

Operating Weight: 2050 (2WD), 2238 (4WD)

Fuel Type: Diesel

Yanmar FX215 vs. Similar Tractors

Power Output
Below Average
Greater than 10% of similar tractors.
Operating Weight
Average
Greater than 70% of similar tractors.

Technical Specifications

Engine

Manufacturer
Yanmar
Model
3TNB82
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
3
Displacement (ci)
85.1
Bore (in)
3.23
Stroke (in)
3.46
Rated RPM
2500
Power Output (hp)
20.7

Transmission

Type
Partial power shift
Forward Gears
9
Reverse Gears
3
Total Gears
-

Dimensions

Length (in)
111.8
Width (in)
48.8
Height (in)
56.9
Operating Weight (lb)
2050 (2WD), 2238 (4WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric (Starter volts: 12)
Brake Type
-
Hydraulic System Type
-
