Yanmar F195

Last Updated: June 2024

Overview

The Yanmar F195 is a compact utility tractor that was built to handle a range of agricultural jobs. It features a 4x2 2WD chassis, which focuses on simplicity and cost-effectiveness in operations. The tractor is powered by Yanmar's own model 3TNB80, a 3-cylinder diesel engine with liquid-cooling, producing 18.7 horsepower with a displacement of 81 cubic inches. The tractor operates at a rated 2500 RPM and implements a gear-type transmission with 9 forward and 3 reverse gears, thus providing various speed options for different tasks. This machine, with its compact dimensions and an operating weight of 1764 pounds for the 2WD version, is designed for maneuverability and easy operation on smaller land plots. Essential details such as tire sizes and hydraulic system specifics are not detailed in the provided data.

Key Specifications

Category: Utility

Power Output: 18.7

Transmission: Gear

Drive Type: 2WD

Operating Weight: 1764 (2WD)

Fuel Type: Diesel

Image Gallery

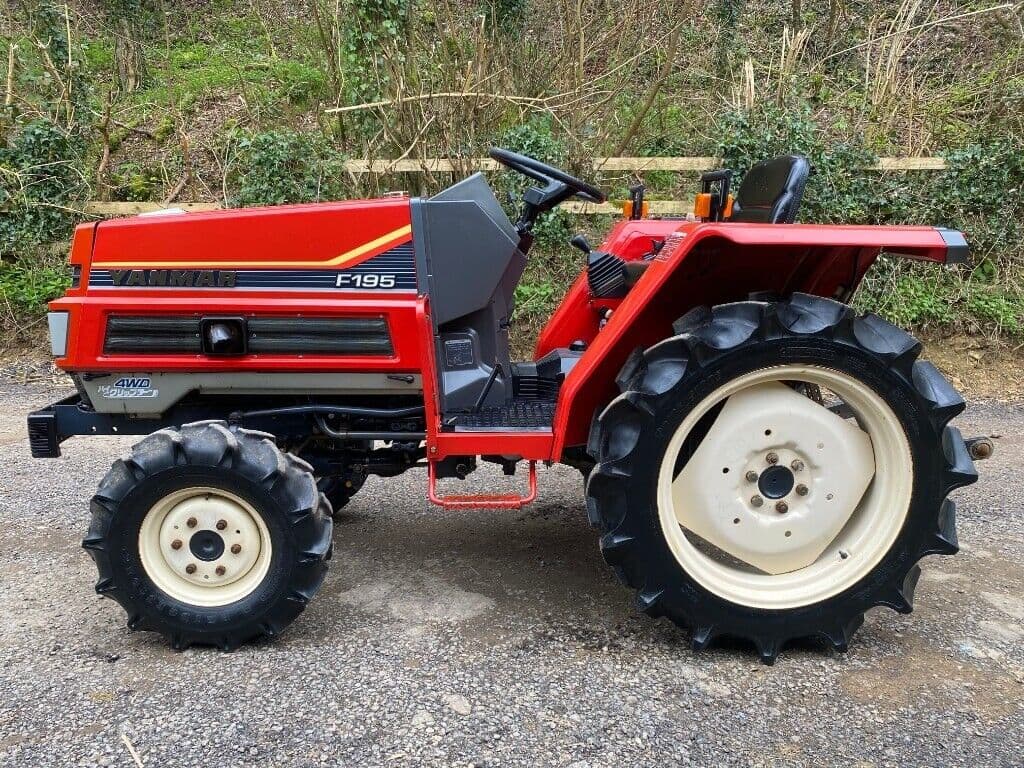

Yanmar F195 Tractor

Yanmar F195 vs. Similar Tractors

Power Output

Poor

Greater than 7% of similar tractors.

Operating Weight

Average

Greater than 69% of similar tractors.

Technical Specifications

Engine

Manufacturer: Yanmar
Model: 3TNB80
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally aspirated
Cylinders: 3
Displacement (ci): 81
Bore (in): 3.15
Stroke (in): 3.46
Rated RPM: 2500
Power Output (hp): 18.7

Transmission

Type: Gear
Forward Gears: 9
Reverse Gears: 3
Total Gears: -

Dimensions

Length (in): 109.8
Width (in): 46.5
Height (in): 57.7
Operating Weight (lb): 1764 (2WD)

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: -
Hitch Type: JIS0
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Open
Starter Type: Electric, 12 volts
Brake Type: -
Hydraulic System Type: -
