Yanmar F-250

Last Updated: June 2024

Overview

The Yanmar F-250 is a compact utility tractor that was manufactured from 1992 to 1998. Suited for a variety of tasks, it features a 4x4 MFWD 4WD chassis and is powered by a robust Yanmar 3TNE82A diesel engine delivering 24.7 horsepower. The tractor comes equipped with a 12-speed shuttle transmission, enabling seamless direction changes with 12 gears available both forward and in reverse. The tractor's steering is power-assisted, providing easier maneuverability, and it can operate with a hefty weight between 1984 and 2127 pounds depending on whether it's outfitted with a ROPS or cab. With a ground clearance of 14.2 inches and standard agricultural tires, the F-250 is well-suited for varied terrain and farming tasks.

Key Specifications

Category: Utility

Power Output: 24.7

Transmission: Shuttle

Drive Type: 4WD

Operating Weight: 1984 (ROPS), 2127 (cab)

Fuel Type: Diesel

Image Gallery

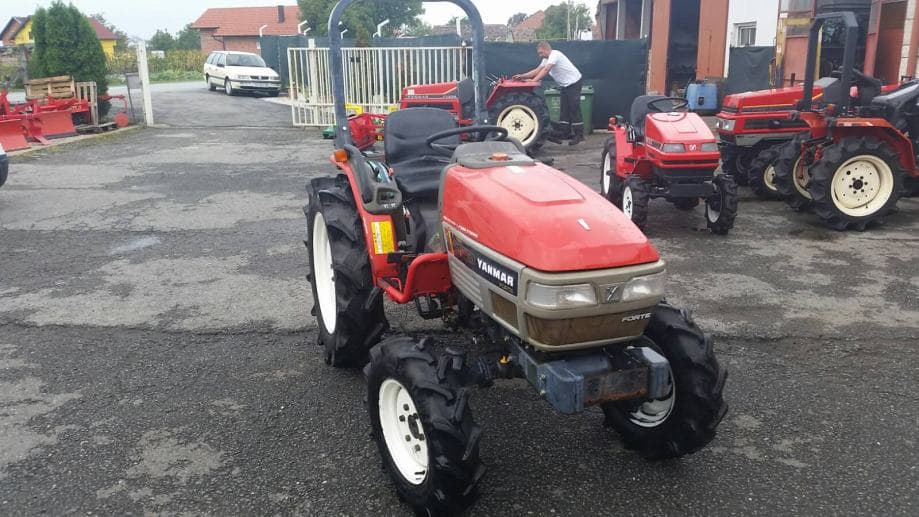

Yanmar F-250 Tractor

Yanmar F-250 vs. Similar Tractors

Power Output

Below Average

Greater than 17% of similar tractors.

Operating Weight

Below Average

Greater than 16% of similar tractors.

Technical Specifications

Engine

Manufacturer: Yanmar
Model: 3TNE82A
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally Aspirated
Cylinders: 3
Displacement (ci): 81.2
Bore (in): 3.23
Stroke (in): 3.31
Rated RPM: 2500
Power Output (hp): 24.7

Transmission

Type: Shuttle
Forward Gears: 12
Reverse Gears: 12
Total Gears: -

Dimensions

Length (in): 105.9
Width (in): 49.6
Height (in): 77.4 (ROPS), 78.5 (cab)
Operating Weight (lb): 1984 (ROPS), 2127 (cab)

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: 1998
Hitch Type: JIS0
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: ROPS/Cab
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
