Yanmar Ex2900

Last Updated: June 2024

Overview

The Yanmar Ex2900 is a compact utility tractor, ideal for light work and maneuvering in tight spaces. It features a 4-wheel drive chassis with multi-function 4WD and power steering, improving handling across varied terrain. The tractor is powered by a reliable Yanmar diesel engine, with a displacement of 100.2 cubic inches, providing 28.7 horsepower at 2600 RPM. It employs a hydrostatic transmission with an infinite range of forward and reverse gears, making it versatile and easy to operate. The tractor has an operating weight of 2550 pounds and rests on a 61-inch wheelbase, ensuring stability and efficient weight distribution. Overall, the Ex2900 combines power, agility, and durability to serve as a versatile asset for any small scale farming or landscaping operations.

Key Specifications

Category: Utility

Power Output: 28.7

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 2550

Fuel Type: Diesel

Image Gallery

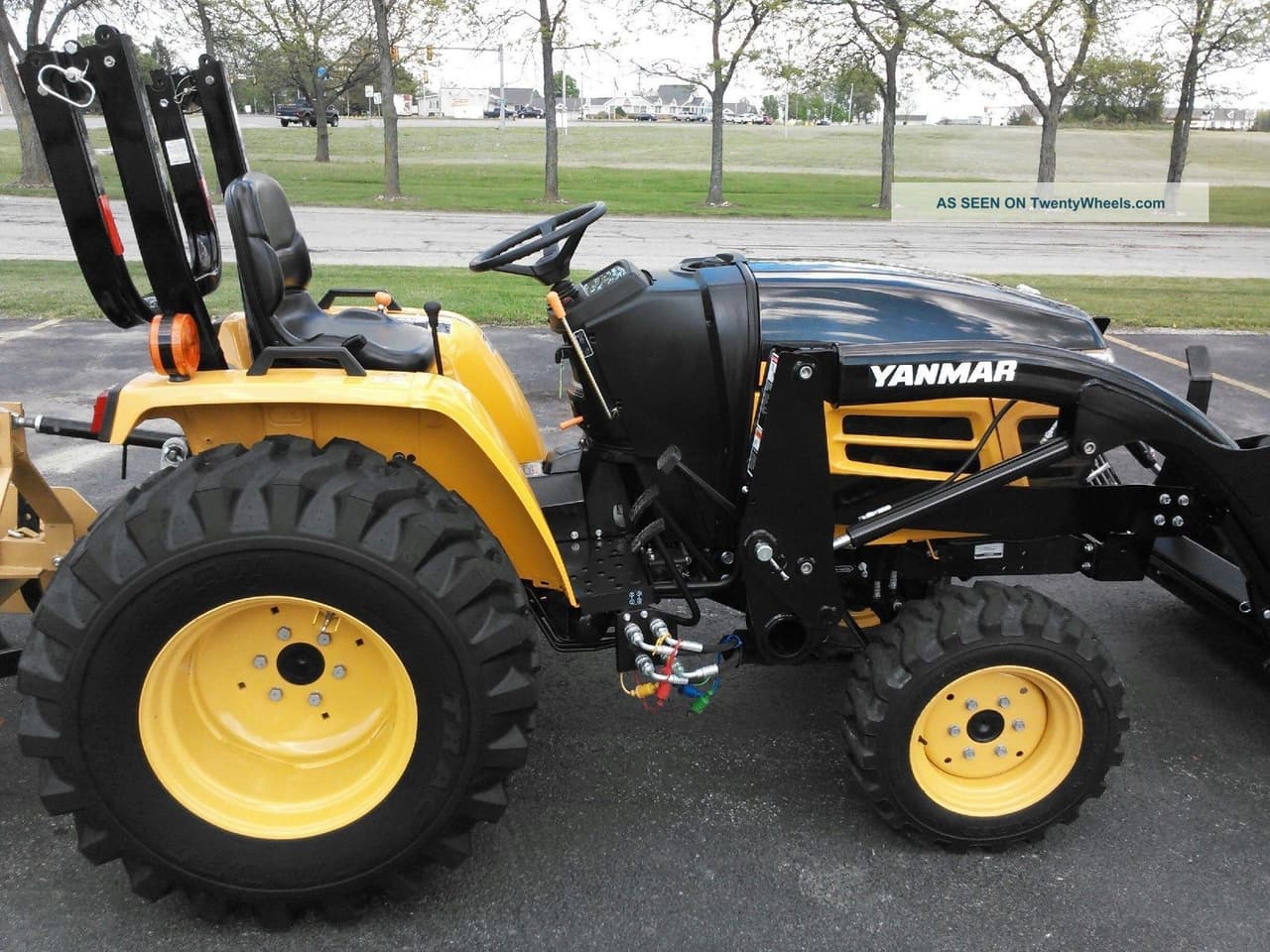

Yanmar Ex2900 Tractor

Yanmar Ex2900 vs. Similar Tractors

Power Output

Below Average

Greater than 23% of similar tractors.

Operating Weight

Below Average

Greater than 20% of similar tractors.

Technical Specifications

Engine

Manufacturer: Yanmar
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Direct injection
Cylinders: 3
Displacement (ci): 100.2
Bore (in): 3.465
Stroke (in): 3.543
Rated RPM: 2600
Power Output (hp): 28.7

Transmission

Type: Hydrostatic
Forward Gears: Infinite (assumed from "infinite (3-range)")
Reverse Gears: Infinite (assumed from "infinite (3-range)")
Total Gears: -

Dimensions

Length (in): 109.5
Width (in): 59.1
Height (in): -
Operating Weight (lb): 2550

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): 4.7
Front Tire Diameter (in): Unknown (assumed to be approximative measurements from the numbers in the model, but exact diameters aren't provided)
Front Tire Width (in): Unknown (assumed to be approximative measurements from the numbers in the model, but exact widths aren't provided)
Rear Tire Diameter (in): Unknown (assumed to be approximative measurements from the numbers in the model, but exact diameters aren't provided)
Rear Tire Width (in): Unknown (assumed to be approximative measurements from the numbers in the model, but exact widths aren't provided)
Front/Rear Rim Diameter (in): -
Tire Type: Ag, Lawn/Turf, Industrial (Specified differently for front and rear tires)
Manufacture - End Year: -
Hitch Type: Category 1 (assumed from "Rear Type: 1")
Hitch Category: Category 3 (assumed discrepancy - sticking with Category 1 from "Rear Type: 1")
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Open Center
