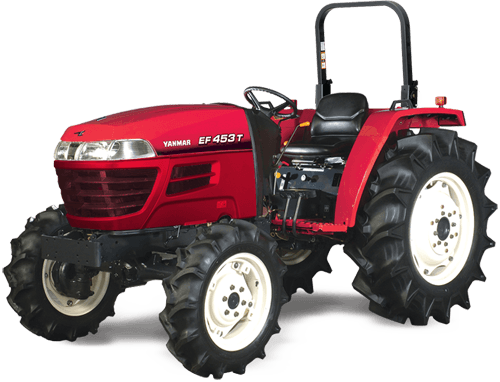

Yanmar EF453

Last Updated: June 2024

Overview

The Yanmar EF453 is a compact utility tractor that was manufactured by Yanmar between 2009 and 2019. It is equipped with a 4x4 MFWD 4WD chassis, making it suitable for various tasks across different terrains. The tractor runs on a Yanmar 4TNV88 four-cylinder diesel engine with a liquid-cooling system, offering a power output of 45 horsepower at an engine rated RPM of 2700. It features a synch shuttle transmission with 9 forward and reverse gears and an electric starter system. With a wheelbase of 72.1 inches and an operating weight of 3417 lbs, the EF453 presents a sturdy base for agricultural operations. Its power steering contributes to ease of maneuverability, while the 14 inches of ground clearance allows some leeway for uneven fields. Dimensions wise, the tractor stretches 127.2 inches in length, 63.2 inches in width, and stands 96.9 inches tall. Some specifics, such as hydraulic system type, tire type, PTO speed, and hitch lift capacity were not provided and could vary based on the tractor's configuration or attachments.
Show more...

Key Specifications

Category: Utility

Power Output: 45

Transmission: Synch shuttle

Drive Type: 4WD

Operating Weight: 3417

Fuel Type: Diesel

Yanmar EF453 vs. Similar Tractors

Power Output
Average
Greater than 43% of similar tractors.
Operating Weight
Below Average
Greater than 29% of similar tractors.

Technical Specifications

Engine

Manufacturer
Yanmar
Model
4TNV88
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
4
Displacement (ci)
133.6
Bore (in)
3.46
Stroke (in)
3.54
Rated RPM
2700
Power Output (hp)
45

Transmission

Type
Synch shuttle
Forward Gears
9
Reverse Gears
9
Total Gears
-

Dimensions

Length (in)
127.2
Width (in)
63.2
Height (in)
96.9
Operating Weight (lb)
3417

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
26
Rear Tire Width (in)
13.6
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
2019
Hitch Type
Category I
Hitch Category
3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
