Yanmar EF338

Last Updated: June 2024

Overview

The Yanmar EF338 is a compact utility tractor that was manufactured from 2002 to 2004. Designed with a four-wheel drive chassis (4x4 MFWD 4WD), it provides good traction and performance in various conditions. This tractor is powered by a Yanmar 3TNV84T, a 1.5L three-cylinder turbocharged diesel engine, which offers 37.4 horsepower and operates at an engine rated RPM of 2700. It is equipped with a 16-speed four-speed power shift transmission, allowing for a substantial range of gears suitable for numerous tasks. The tractor's weight ranges between 3263 lbs with ROPS and 3616 lbs with an optional cab, offering comfort and protection during operation. The EF338 maintains dimensions of 125.2 inches in length, 59.3 inches in width, and varies in height with 76.2 inches for ROPS and 77.6 inches for the cab configuration. The front and rear tires come in standard agricultural sizes, with the rear tire measuring 13.6-24 inches.

Key Specifications

Category: Utility

Power Output: 37.4

Transmission: four-speed power shift

Drive Type: 4WD

Operating Weight: 3263 (ROPS) | 3616 (cab)

Fuel Type: diesel

Image Gallery

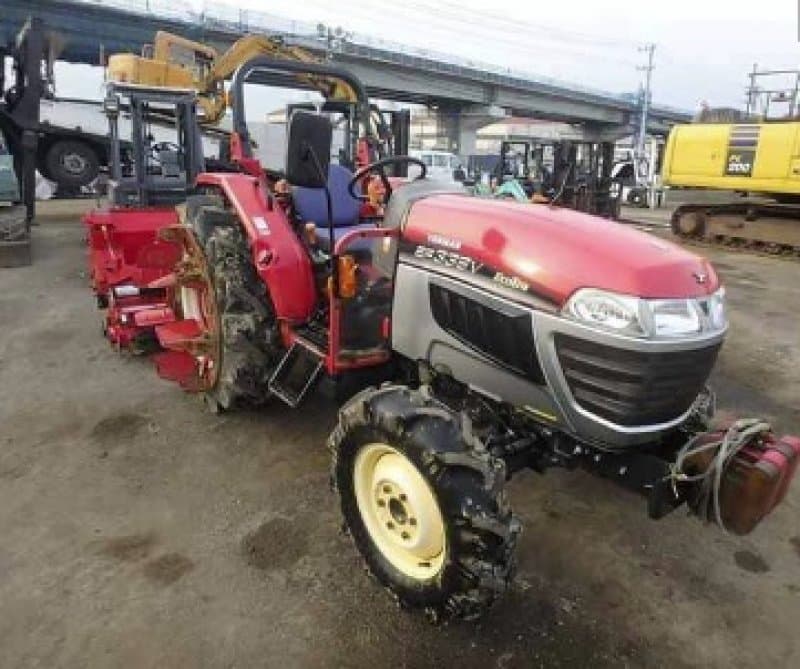

Yanmar EF338 Tractor

Yanmar EF338 vs. Similar Tractors

Power Output

Average

Greater than 34% of similar tractors.

Operating Weight

Above Average

Greater than 85% of similar tractors.

Technical Specifications

Engine

Manufacturer: Yanmar
Model: 3TNV84T
Cooling Type: liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: diesel
Induction Type: turbocharged
Cylinders: 3
Displacement (ci): 91.3
Bore (in): 3.31
Stroke (in): 3.54
Rated RPM: 2700
Power Output (hp): 37.4

Transmission

Type: four-speed power shift
Forward Gears: 16
Reverse Gears: 16
Total Gears: 32

Dimensions

Length (in): 125.2
Width (in): 59.3
Height (in): 76.2 (ROPS) | 77.6 (cab)
Operating Weight (lb): 3263 (ROPS) | 3616 (cab)

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): 24
Rear Tire Width (in): 13.6
Front/Rear Rim Diameter (in): -
Tire Type: Standard (ag)
Manufacture - End Year: 2004
Hitch Type: -
Hitch Category: JIS1
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: ROPS | cab
Starter Type: electric
Brake Type: -
Hydraulic System Type: -
