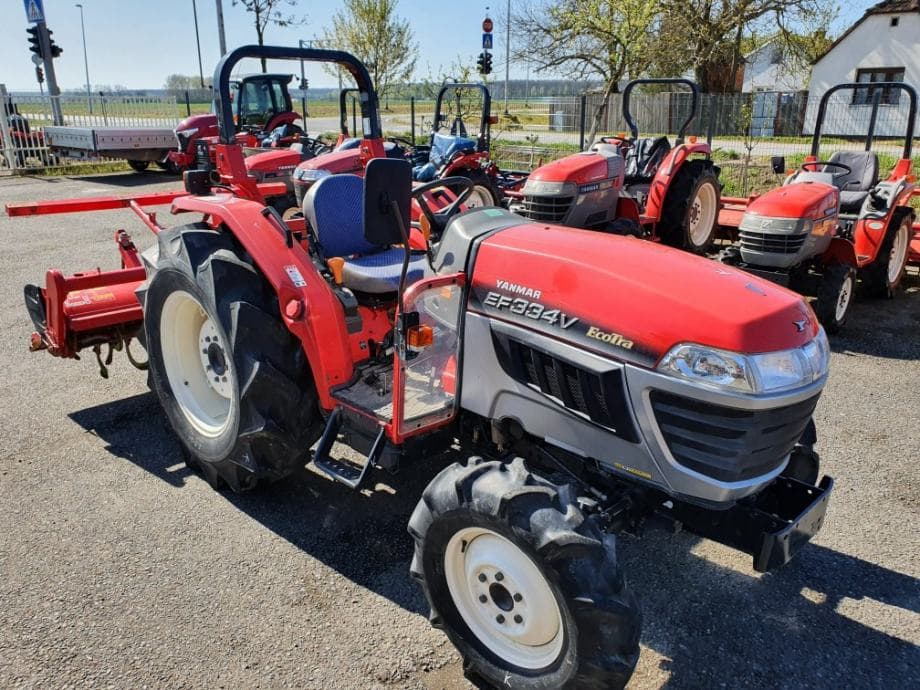

Yanmar EF334V

Last Updated: June 2024

Overview

The Yanmar EF334V is a compact utility tractor that brings together versatility and durability for various agricultural tasks. Equipped with a reliable 33.5 horsepower Yanmar 3TNV88 engine, this tractor offers powerful performance in a smaller frame. With a liquid-cooling system, it operates efficiently even under demanding conditions. The tractor's transmission is a four-speed power shift allowing 16 forward and reverse gears, enabling operators to select the perfect speed for different applications. Depending on the task, operators have the choice of an open station with ROPS or a cab, both designed for better comfort and safety. This tractor, produced from 2005 to 2009, also features a 4x4 MFWD 4WD chassis that provides improved traction across uneven and challenging terrains, making it suitable for a range of activities on the farm. With its substantial weight of 3263 lbs (ROPS) and 3605 lbs (cab), it offers a stabile base for operation, and the model's flexibility is further exemplified by its accommodation of both Category 3 hitch systems and a range of tire configurations.
Show more...

Key Specifications

Category: Utility

Power Output: 33.5

Transmission: Four-speed power shift

Drive Type: 4WD

Operating Weight: 3263 (ROPS), 3605 (cab)

Fuel Type: Diesel

Yanmar EF334V vs. Similar Tractors

Power Output
Below Average
Greater than 29% of similar tractors.
Operating Weight
Below Average
Greater than 28% of similar tractors.

Technical Specifications

Engine

Manufacturer
Yanmar
Model
3TNV88
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
3
Displacement (ci)
100.2
Bore (in)
3.46
Stroke (in)
3.54
Rated RPM
2700
Power Output (hp)
33.5

Transmission

Type
Four-speed power shift
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
125.2
Width (in)
58.3
Height (in)
76.2 (ROPS), 77.6 (cab)
Operating Weight (lb)
3263 (ROPS), 3605 (cab)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
2009
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
ROPS, Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
