Yanmar EF330V

Last Updated: June 2024

Overview

The Yanmar EF330V is a compact utility tractor that was manufactured between 2005 and 2009. It is equipped with a 29.6 horsepower Yanmar 3TNV88 diesel engine and a four-wheel drive chassis with a four-speed power shift transmission. This model boasts a liquid-cooled three-cylinder engine with a displacement of 100.2 cubic inches. Operating at a rated RPM of 2700, the tractor provides a dependable performance for a variety of tasks. It features a wheelbase of 70.9 inches, balanced by a weight range of 3230 pounds with the ROPS and 3571 pounds with the cab. It maintains ground clearance of 12.6 inches, ensuring adequate maneuverability over uneven terrain. The Yanmar EF330V caters well to tasks necessitating a compact but powerful tractor, suitable for various agricultural and utility applications. Additional details like hydraulic system type, PTO speeds, and hitch specifications were not specified in the data provided.

Key Specifications

Category: Utility

Power Output: 29.6

Transmission: Four-speed power shift

Drive Type: 4WD

Operating Weight: 3230 (ROPS), 3571 (cab)

Fuel Type: Diesel

Image Gallery

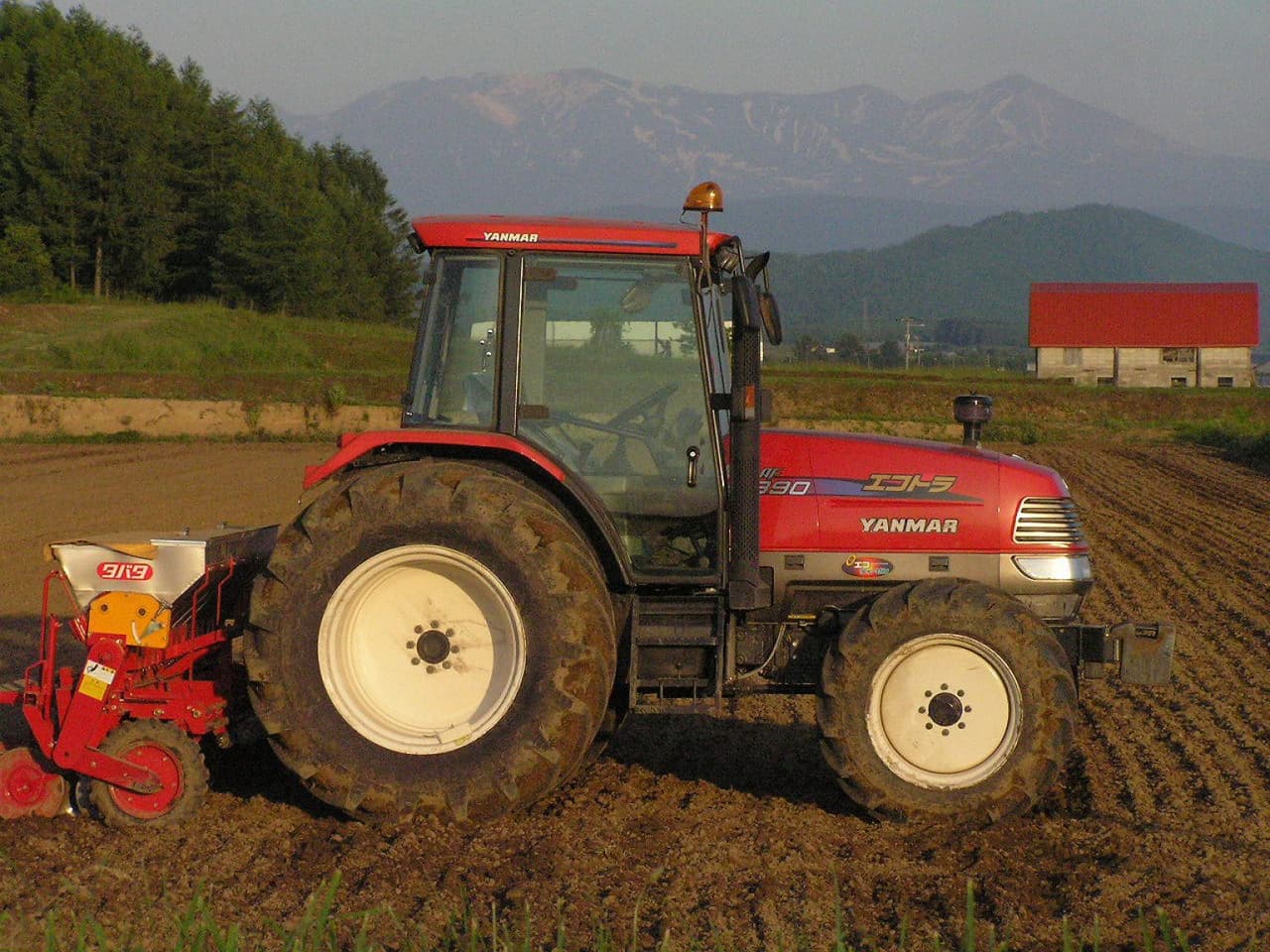

Yanmar EF330V Tractor

Yanmar EF330V vs. Similar Tractors

Power Output

Below Average

Greater than 24% of similar tractors.

Operating Weight

Below Average

Greater than 27% of similar tractors.

Technical Specifications

Engine

Manufacturer: Yanmar
Model: 3TNV88
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally aspirated
Cylinders: 3
Displacement (ci): 100.2
Bore (in): 3.46
Stroke (in): 3.54
Rated RPM: 2700
Power Output (hp): 29.6

Transmission

Type: Four-speed power shift
Forward Gears: 16
Reverse Gears: 16
Total Gears: -

Dimensions

Length (in): 125.2
Width (in): 58.3
Height (in): 76.2 (ROPS), 77.6 (cab)
Operating Weight (lb): 3230 (ROPS), 3571 (cab)

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag (Front: 8-16, Rear: 12.4-26)
Manufacture - End Year: 2009
Hitch Type: JIS1
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: ROPS/Cab
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
