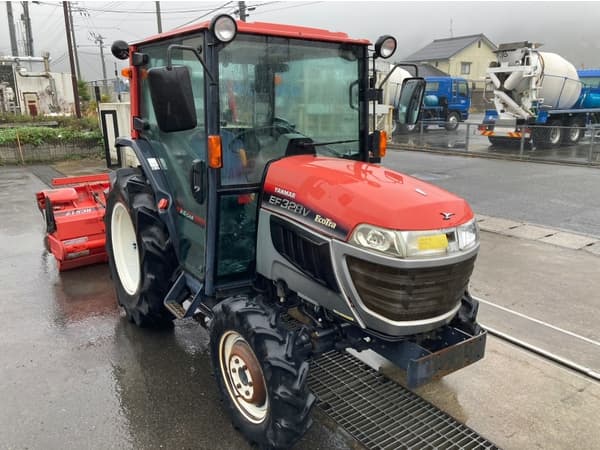

Yanmar EF328

Last Updated: September 2024

Overview

The Yanmar EF328 is a utility tractor that was made from 2002 to 2004. It's a compact but strong machine, perfect for small farms and big gardens. This tractor has four-wheel drive, which means it can handle tough ground and steep hills.

The EF328 has a Yanmar diesel engine with three cylinders. It's not the most powerful engine out there, but it gets the job done with 27.6 horsepower. The engine is liquid-cooled, which helps it run smoothly in hot weather. The tractor has a four-speed power shift transmission with 16 forward and 16 reverse gears, giving you lots of options for different tasks. It's pretty light for a tractor, weighing 2,976 pounds, which makes it easy to move around. The tractor is 120.7 inches long, 55.7 inches wide, and 77.6 inches tall, so it can fit in tight spaces.
Show more...

Key Specifications

Category: Utility

Power Output: 28 hp (20.6 kW)

Transmission: four-speed power shift

Drive Type: 4WD

Operating Weight: 2976 lb (1350 kg)

Fuel Type: diesel

Yanmar EF328 vs. Similar Tractors

Power Output

The Power Output for the Yanmar EF328 is Below Average. It is greater than 22% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 4.7K+ tractors in our database)

Operating Weight

The Operating Weight for the Yanmar EF328 is Below Average. It is greater than 25% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 4.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Yanmar EF328 is Below Average. It is greater than 19% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Yanmar EF328 is Above Average. It is greater than 77% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Yanmar
Model
3TNV84
Cooling Type
liquid-cooled
Fuel Type
diesel
Cylinders
3
Displacement
91 ci (1.5 L)
Bore
3.31 in (84.1 mm)
Stroke
3.54 in (89.9 mm)
Rated RPM
2600
Power Output
28 hp (20.6 kW)

Transmission

Type
four-speed power shift
Forward Gears
16
Reverse Gears
16

Drivetrain

Chassis
4x4 MFWD 4WD
Drive Type
4WD
