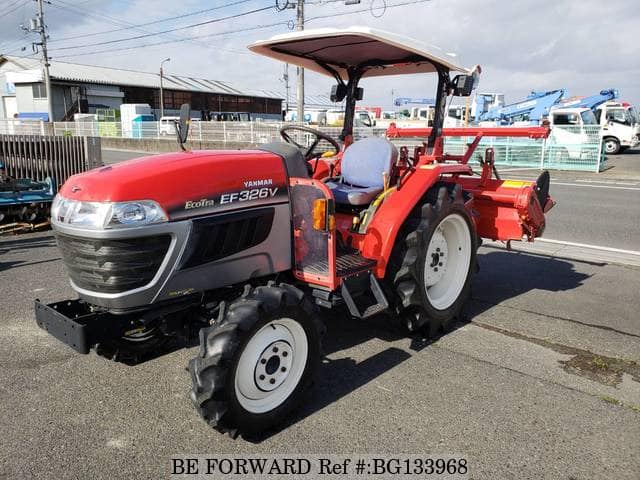

Yanmar EF326V

Last Updated: June 2024

Overview

The Yanmar EF326V is a compact utility tractor known for its rugged versatility and reliable performance. Manufactured between 2005 and 2009, it features a 25.6 horsepower Yanmar 3TNV84 diesel engine with a liquid cooling system, offering efficiency and durability in various agricultural tasks. Its robust chassis includes a 4x4 MFWD 4WD drivetrain, supporting better traction across uneven terrain. The four-speed power shift transmission provides 16 forward and reverse gears, which simplifies operation and enhances control during operation. With an operating weight ranging from 2954 to 3351 pounds, depending on the configuration, the tractor is substantial enough to tackle heavy jobs while maintaining maneuverability. The EF326V comes equipped with standard agricultural tires, providing good traction for various farming applications. Notable dimensions include a length of 120.7 inches, a width of 53.5 inches with ROPS, and 54.7 inches with a cab option, along with a height of 77 inches for models with ROPS and 77.6 inches with a cab, which allows for operation in a range of environments. The ground clearance of 12.4 inches and a wheelbase of 64.6 inches contribute to its stability and capability to navigate rough terrains.
Show more...

Key Specifications

Category: Utility

Power Output: 25.6

Transmission: Four-speed power shift

Drive Type: 4WD

Operating Weight: 2954 to 3351

Fuel Type: Diesel

Yanmar EF326V vs. Similar Tractors

Power Output
Below Average
Greater than 19% of similar tractors.
Operating Weight
Above Average
Greater than 84% of similar tractors.

Technical Specifications

Engine

Manufacturer
Yanmar
Model
3TNV84
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
3
Displacement (ci)
91.3
Bore (in)
3.31
Stroke (in)
3.54
Rated RPM
2600
Power Output (hp)
25.6

Transmission

Type
Four-speed power shift
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
120.7
Width (in)
53.5 (ROPS), 54.7 (Cab)
Height (in)
77 (ROPS), 77.6 (Cab)
Operating Weight (lb)
2954 to 3351

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
2009
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
ROPS, Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
