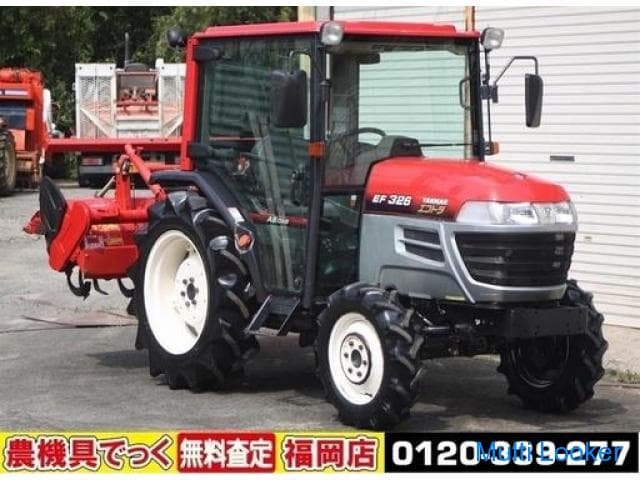

Yanmar EF326

Last Updated: September 2024

Overview

The Yanmar EF326 is a utility tractor that was made from 2002 to 2004. It's a small but strong helper on the farm. This tractor has four-wheel drive, which means it can handle tough ground. It has a special transmission with 16 forward gears and 16 reverse gears, giving it 32 gears in total. This helps the driver choose the right speed for different jobs.

The EF326 has a Yanmar engine with three cylinders. It runs on diesel fuel and doesn't need extra air pushed into it. The engine is pretty small compared to other tractors, but it spins very fast at 2600 rpm. It can make 25.6 horsepower, which is enough for many farm tasks. The tractor is 120.7 inches long and 54.7 inches wide, making it good for working in tight spaces. It has big farm tires on all four wheels and starts up with an electric starter, just like a car.
Show more...

Key Specifications

Category: Utility

Power Output: 26 hp (19.1 kW)

Transmission: Four-speed power shift

Drive Type: 4WD

Fuel Type: Diesel

Yanmar EF326 vs. Similar Tractors

Power Output

The Power Output for the Yanmar EF326 is Below Average. It is greater than 19% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 4.7K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Yanmar EF326 is Below Average. It is greater than 19% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Yanmar EF326 is Above Average. It is greater than 77% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Yanmar
Model
3TNV84
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Induction Type
Natural aspiration
Cylinders
3
Displacement
91 ci (1.5 L)
Bore
3.31 in (84.1 mm)
Stroke
3.54 in (89.9 mm)
Rated RPM
2600
Power Output
26 hp (19.1 kW)

Transmission

Type
Four-speed power shift
Forward Gears
16
Reverse Gears
16
Total Gears
32

Drivetrain

Chassis
4x4 MFWD 4WD
Drive Type
4WD
