Overview

The Yanmar EF324 is a compact utility tractor, manufactured between 2002 and 2004. As a 4x4 MFWD 4WD tractor, it boasts a power shift transmission with a notable 16 forward and reserve gears. The tractor comes equipped with a Yanmar 3TNV84 model engine, which delivers a power output of 23.7 hp and runs at a rated RPM of 2500. The liquid-cooled diesel engine has a displacement of 91.3 cubic inches with a bore and stroke of 3.31x3.54 inches. Sizes and weights vary between models with ROPS and cab configurations, with a notable ground clearance of 13 inches. The EF324 was designed for versatility and efficiency, catering to the needs of small farms and property maintenance tasks.

Key Specifications

Category: Utility

Power Output: 23.7

Transmission: Four-speed power shift

Drive Type: 4WD

Operating Weight: Cab: 3153, ROPS: 2756

Fuel Type: Diesel

Image Gallery

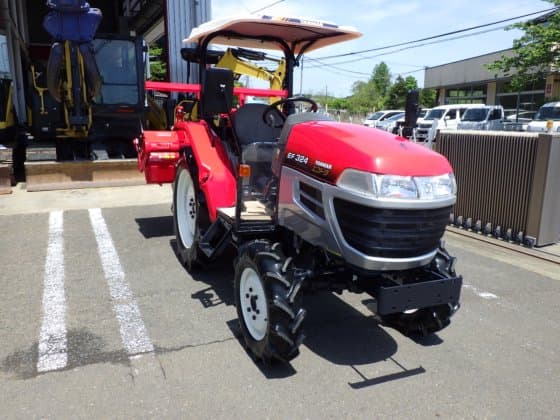

Yanmar EF324 Tractor

Yanmar EF324 vs. Similar Tractors

Power Output

Below Average

Greater than 15% of similar tractors.

Operating Weight

Below Average

Greater than 27% of similar tractors.

Technical Specifications

Engine

Manufacturer: Yanmar
Model: 3TNV84
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally aspirated
Cylinders: 3
Displacement (ci): 91.3
Bore (in): 3.31
Stroke (in): 3.54
Rated RPM: 2500
Power Output (hp): 23.7

Transmission

Type: Four-speed power shift
Forward Gears: 16
Reverse Gears: 16
Total Gears: -

Dimensions

Length (in): Cab: 117.5, ROPS: 113.4
Width (in): Cab: 54.7, ROPS: 53.5
Height (in): Cab: 78.4, ROPS: 78
Operating Weight (lb): Cab: 3153, ROPS: 2756

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: 2004
Hitch Type: -
Hitch Category: Category 1
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Available with ROPS or Cab (indicated by model differences in wheelbase, length, width, and weight)
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
