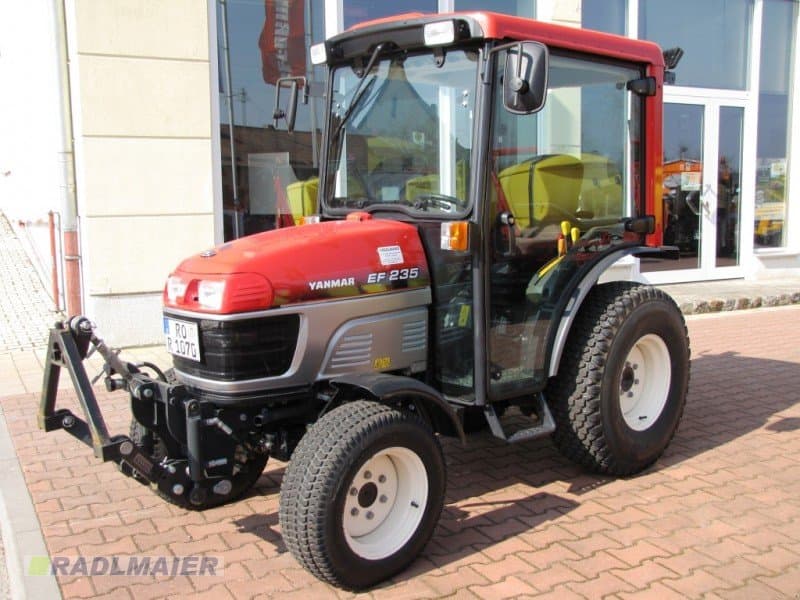

Yanmar EF235H

Last Updated: June 2024

Overview

The Yanmar EF235H is a robust utility tractor designed with a 4x4 MFWD 4WD chassis, providing strong traction and maneuverability in various field conditions. It's driven by a 34.5 horsepower Yanmar 3TNV88 diesel engine, capable of reaching up to 2600 RPM. This model features a hydrostatic transmission with infinite forward and reverse gears across three ranges, granting seamless shifting for diverse farming tasks. The tractor's substantial operating weight of 2150 pounds with ROPs adds stability during operation. Although many specific details such as tire sizes, hitch type and capacity, and precise cooling, induction, and hydraulic systems specifications remain unknown, this tractor's durability and power make it suited for a variety of agricultural purposes.
Show more...

Key Specifications

Power Output: 34.5

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 2150 (with ROPS)

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Yanmar
Model
3TNV88
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
3
Displacement (ci)
100.2
Bore (in)
-
Stroke (in)
-
Rated RPM
2600
Power Output (hp)
34.5

Transmission

Type
Hydrostatic
Forward Gears
Infinite (3 range)
Reverse Gears
Infinite (3 range)
Total Gears
-

Dimensions

Length (in)
115
Width (in)
51.8
Height (in)
78.7
Operating Weight (lb)
2150 (with ROPS)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 1
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric Starter (12 volts)
Brake Type
-
Hydraulic System Type
-
