Yanmar AF650

Last Updated: June 2024

Overview

The Yanmar AF650 is a four-wheel drive utility tractor, produced from 2001 to 2005. It is equipped with a 50 hp Yanmar 4TNV94 diesel engine and a power shuttle transmission with 18 forward and reverse gears. The tractor features power steering and a Multiple Field Drive (MFWD) 4WD system for improved handling and traction. With a wheelbase of 74.8 inches and an operating weight of 4883 lbs, the AF650 provides a stable platform for various agricultural tasks. The tractor also offers a 2500 RPM rated engine speed, and comes fitted with standard agricultural tires, front: 8-15 and rear: 13.6-28, to handle various field conditions. Further details such as PTO speed, hitch lift capacity, and hydraulic system type remain unspecified in the provided data.

Key Specifications

Category: Utility

Power Output: 50

Transmission: Power Shuttle

Drive Type: 4WD

Operating Weight: 4883

Fuel Type: Diesel

Image Gallery

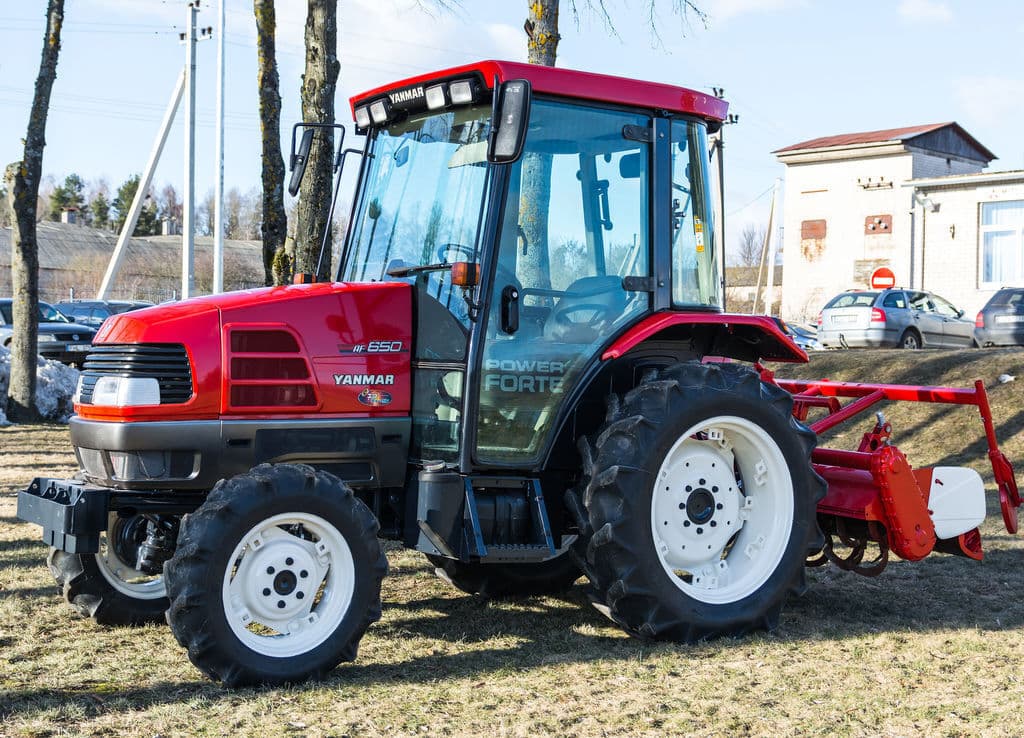

Yanmar AF650 Tractor

Yanmar AF650 vs. Similar Tractors

Power Output

Average

Greater than 49% of similar tractors.

Operating Weight

Average

Greater than 42% of similar tractors.

Technical Specifications

Engine

Manufacturer: Yanmar
Model: 4TNV94
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: -
Cylinders: 4
Displacement (ci): 168.1
Bore (in): -
Stroke (in): -
Rated RPM: 2500
Power Output (hp): 50

Transmission

Type: Power Shuttle
Forward Gears: 18
Reverse Gears: 18
Total Gears: -

Dimensions

Length (in): 136.4
Width (in): 63
Height (in): 96.9
Operating Weight (lb): 4883

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): 28
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: 2005
Hitch Type: Category 1
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
