Yanmar AF336

Last Updated: June 2024

Overview

The Yanmar AF336 is a compact utility tractor that was manufactured by Yanmar from 2002 to 2005. Featuring a robust 4-cylinder, 4TNE84 Yanmar diesel engine that delivers 36 horsepower and operates at 2600 RPM, it aligns well with the power requirements for various tasks around the farm. The tractor's transmission is a 16-speed power shuttle which allows for convenient direction changing without clutching. This Yanmar model is designed with a 4-wheel drive chassis (4x4 MFWD 4WD) and comes with power steering to enhance maneuverability and ease of use. It has an operational weight of 3197 lbs and boasts dimensions of 129.5 inches long, 59.1 inches wide, and 77.2 inches tall, which makes it suitable for a range of activities from tilling to general transportation within agricultural settings. The Yanmar AF336 runs on standard agricultural tires with sizes, the rear tires being 13.6-26. Details about the hydraulic system, PTO speeds, and operator station type are not available.

Key Specifications

Power Output: 36

Transmission: Power shuttle

Drive Type: 4WD

Operating Weight: 3197

Fuel Type: Diesel

Image Gallery

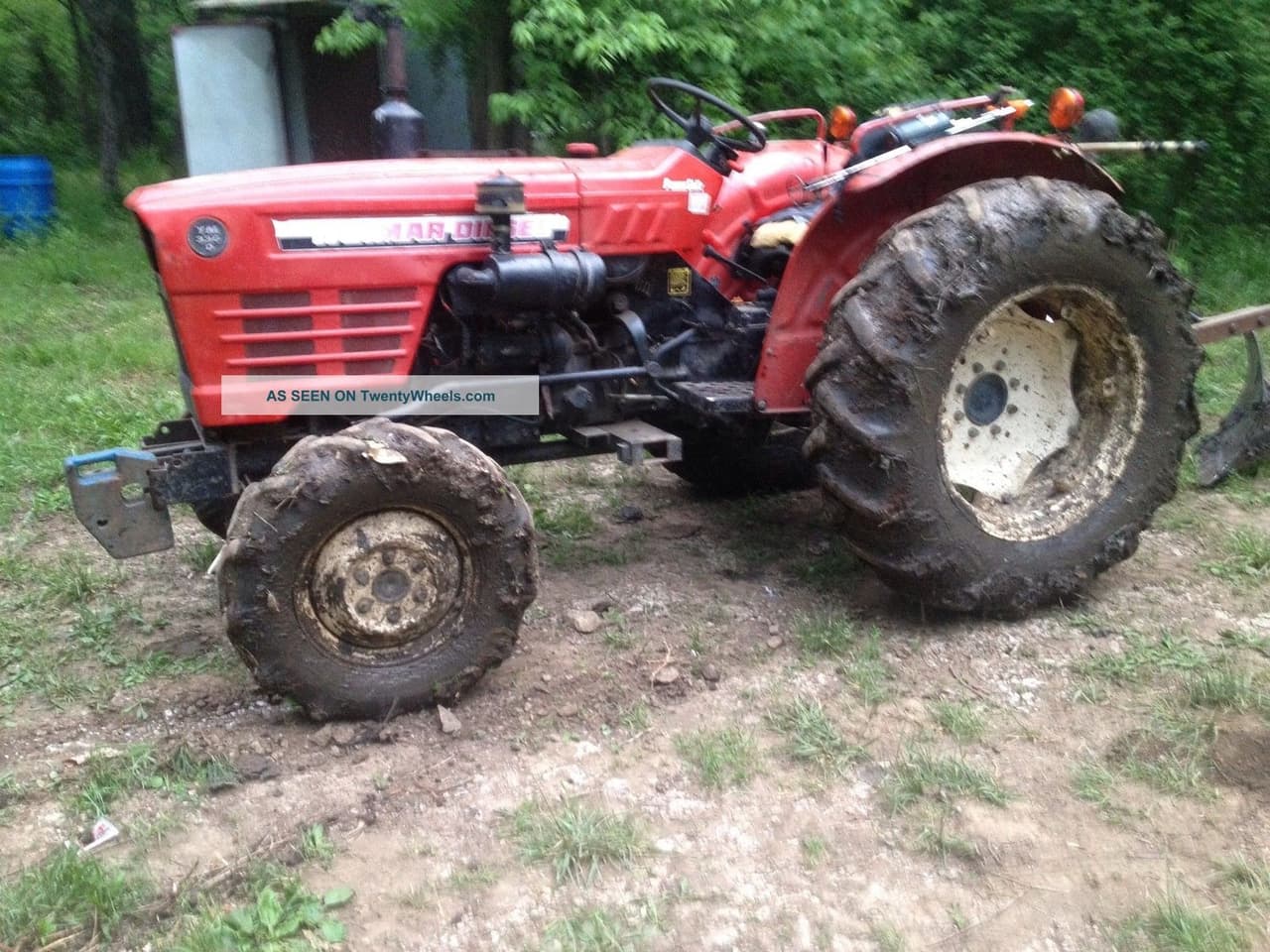

Yanmar AF336 Tractor

Technical Specifications

Engine

Manufacturer: Yanmar
Model: 4TNE84
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Direct injection
Cylinders: 4
Displacement (ci): 121.7
Bore (in): -
Stroke (in): -
Rated RPM: 2600
Power Output (hp): 36

Transmission

Type: Power shuttle
Forward Gears: 16
Reverse Gears: 16
Total Gears: -

Dimensions

Length (in): 129.5
Width (in): 59.1
Height (in): 77.2
Operating Weight (lb): 3197

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): 26
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: 2005
Hitch Type: Three-Point Hitch
Hitch Category: Category 1
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
