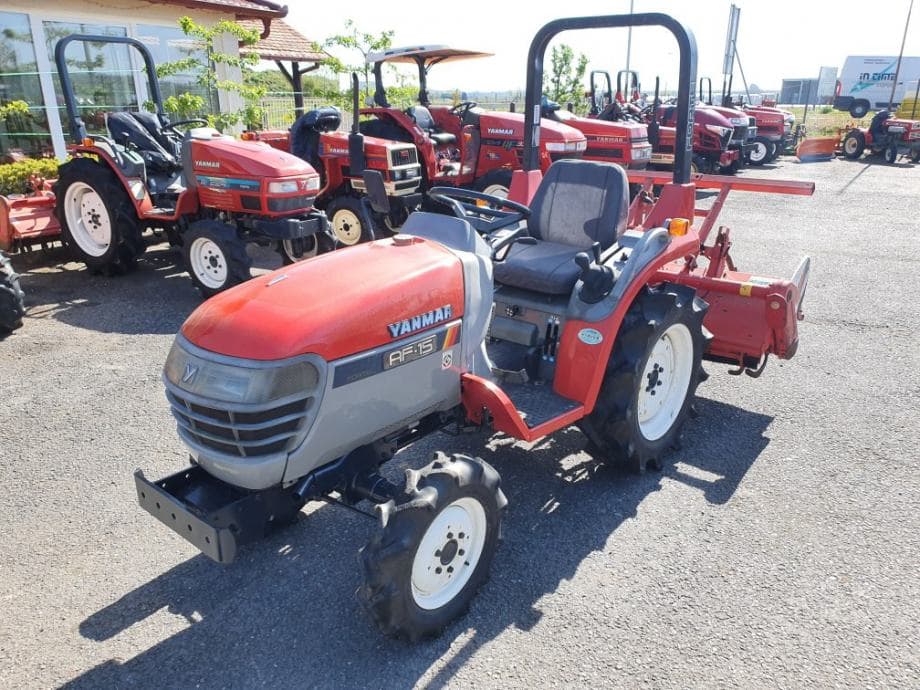

Yanmar AF-15

Last Updated: June 2024

Overview

The Yanmar AF-15 is a compact utility tractor produced between 1992 and 1996, recognizable for its reliable Yanmar 3TNA72 engine and 4WD chassis. The tractor features a liquid-cooled, 3-cylinder diesel engine with a displacement of 53.6 cubic inches, producing up to 14.8 horsepower. It utilizes a creeper transmission type with 8 forward and reverse gears, optimized later to 12 forward and reverse gears, to provide flexibility and control in a variety of farming tasks. This model is suited for operations requiring a compact tractor with moderate power and an electric start system. The tractor's physical dimensions (103.2 inches in length, 41.3 inches in width, and 72.2 inches in height), combined with a weight of 1587 pounds, ensure stability and maneuverability. Its notable ground clearance of 11.4 inches allows for operation on uneven terrain, making it versatile for different land conditions. Although additional details regarding its hitch type, PTO, and hydraulic system are not provided, the AF-15 remains a dependable machine for those requiring a utility tractor with these basic specifications.
Show more...

Key Specifications

Category: Utility

Power Output: 14.8

Transmission: Creeper

Drive Type: 4WD

Operating Weight: 1587

Fuel Type: Diesel

Yanmar AF-15 vs. Similar Tractors

Power Output
Poor
Greater than 2% of similar tractors.
Operating Weight
Below Average
Greater than 12% of similar tractors.

Technical Specifications

Engine

Manufacturer
Yanmar
Model
3TNA72
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
3
Displacement (ci)
53.6
Bore (in)
2.83
Stroke (in)
2.83
Rated RPM
2500
Power Output (hp)
14.8

Transmission

Type
Creeper
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
103.2
Width (in)
41.3
Height (in)
72.2
Operating Weight (lb)
1587

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
1996
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
