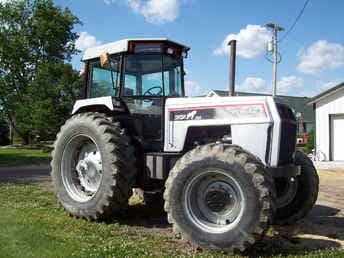

White Workhorse 145

Last Updated: June 2024

Overview

The White Workhorse 145 is a diesel-powered tractor designed for a variety of agricultural tasks. With an engine provided by CDC-Cummins, this model features a turbocharged aftercooled diesel system with six cylinders and a liquid cooling system. It has an engine displacement of 359 cubic inches and a bore and stroke of 4.016 inches and 4.724 inches respectively. The tractor operates at a rated RPM of 2200 and has a compression ratio of 16.5:1. A distinguishing feature is its transmission system, which is a partial power shift type with 18 forward and 6 reverse gears, allowing for versatile maneuvering in various farming operations. The tractor has different configurations for 2WD and 4WD wheelbases, and various shipping and operating weights which suggest that it can be customized to the user's needs. However, full specifications on power output and other details remain undisclosed.
Show more...

Key Specifications

Transmission: partial power shift

Operating Weight: 14665

Fuel Type: turbocharged aftercooled diesel

Technical Specifications

Engine

Manufacturer
CDC-Cummins
Model
-
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
turbocharged aftercooled diesel
Induction Type
-
Cylinders
6
Displacement (ci)
359
Bore (in)
4.016
Stroke (in)
4.724
Rated RPM
2200
Power Output (hp)
-

Transmission

Type
partial power shift
Forward Gears
18
Reverse Gears
6
Total Gears
-

Dimensions

Length (in)
175
Width (in)
-
Height (in)
-
Operating Weight (lb)
14665

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
III/II
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
12-volt
Brake Type
-
Hydraulic System Type
closed center
