White Field Boss 16

Last Updated: June 2024

Overview

The White Field Boss 16 is a versatile tractor that could cater to a range of agricultural tasks. Equipped with a Mitsubishi 3-cylinder diesel engine, this tractor produces 16 horsepower and a displacement of 51.8 cubic inches. It features a liquid-cooled system and operates at a rated RPM of 2600. Starting is made easy with pre-heating glow plugs, especially valuable in cooler climates or winter conditions. The manual steering system is paired with a hydrostatic transmission allowing for infinite forward and reverse speeds, which could be quite beneficial for tasks requiring variable speed control. Its tire configuration with optional agricultural or lawn/turf types, and its 2WD or 4WD chassis options, suggests versatility on different terrains. The White Field Boss 16 tractor, dimensions indicating both 2WD and 4WD length, 44.1 inches in width, and 66.9 inches in height (to the exhaust), demonstrates a compact profile that might suit a variety of tasks without committing to a larger footprint.
Show more...

Key Specifications

Power Output: 16

Transmission: Hydrostatic

Drive Type: 2WD/4WD

Operating Weight: 1100 (2WD Shipping) / 1188 (4WD Shipping)

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
3
Displacement (ci)
51.8
Bore (in)
2.68
Stroke (in)
3.07
Rated RPM
2600
Power Output (hp)
16

Transmission

Type
Hydrostatic
Forward Gears
Infinite
Reverse Gears
Infinite
Total Gears
-

Dimensions

Length (in)
77.95 (2WD) / 78.7 (4WD)
Width (in)
44.1
Height (in)
66.9
Operating Weight (lb)
1100 (2WD Shipping) / 1188 (4WD Shipping)

Power Take-Off (PTO)

PTO Type
Live
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
2WD/4WD
Steering Type
Manual
Coolant Capacity (qts)
-

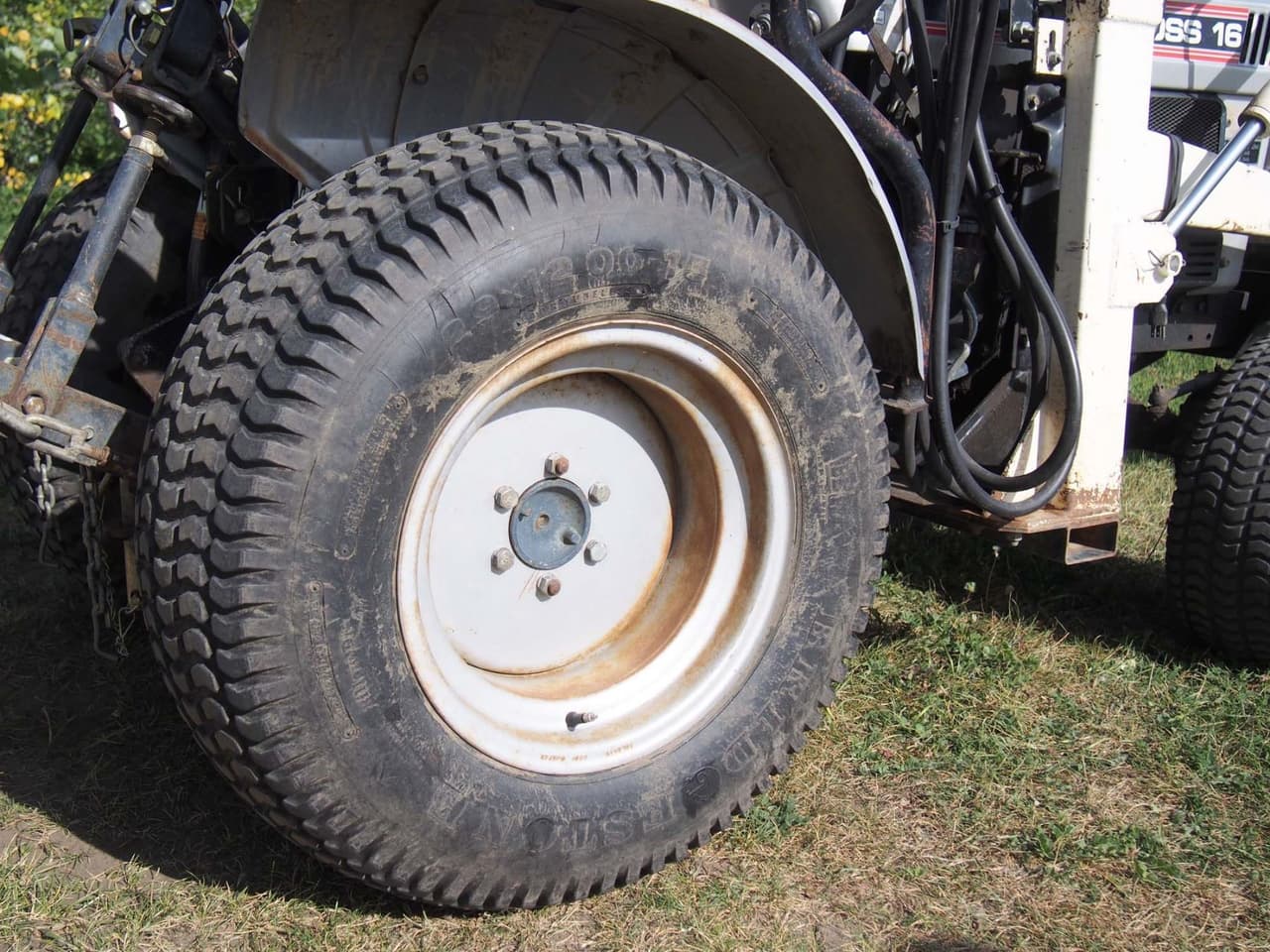

Front Tire Diameter (in)
12 (2WD Ag) / 10 (Turf)
Front Tire Width (in)
4.00 (2WD Ag) / 20 (Turf)
Rear Tire Diameter (in)
18 (Ag) / 15 (Turf)
Rear Tire Width (in)
8.00 (Ag) / 29 (Turf)
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural (Ag) / Lawn/turf
Manufacture - End Year
-
Hitch Type
Category I
Hitch Category
Category 1
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric Starter (12 volts)
Brake Type
-
Hydraulic System Type
-
