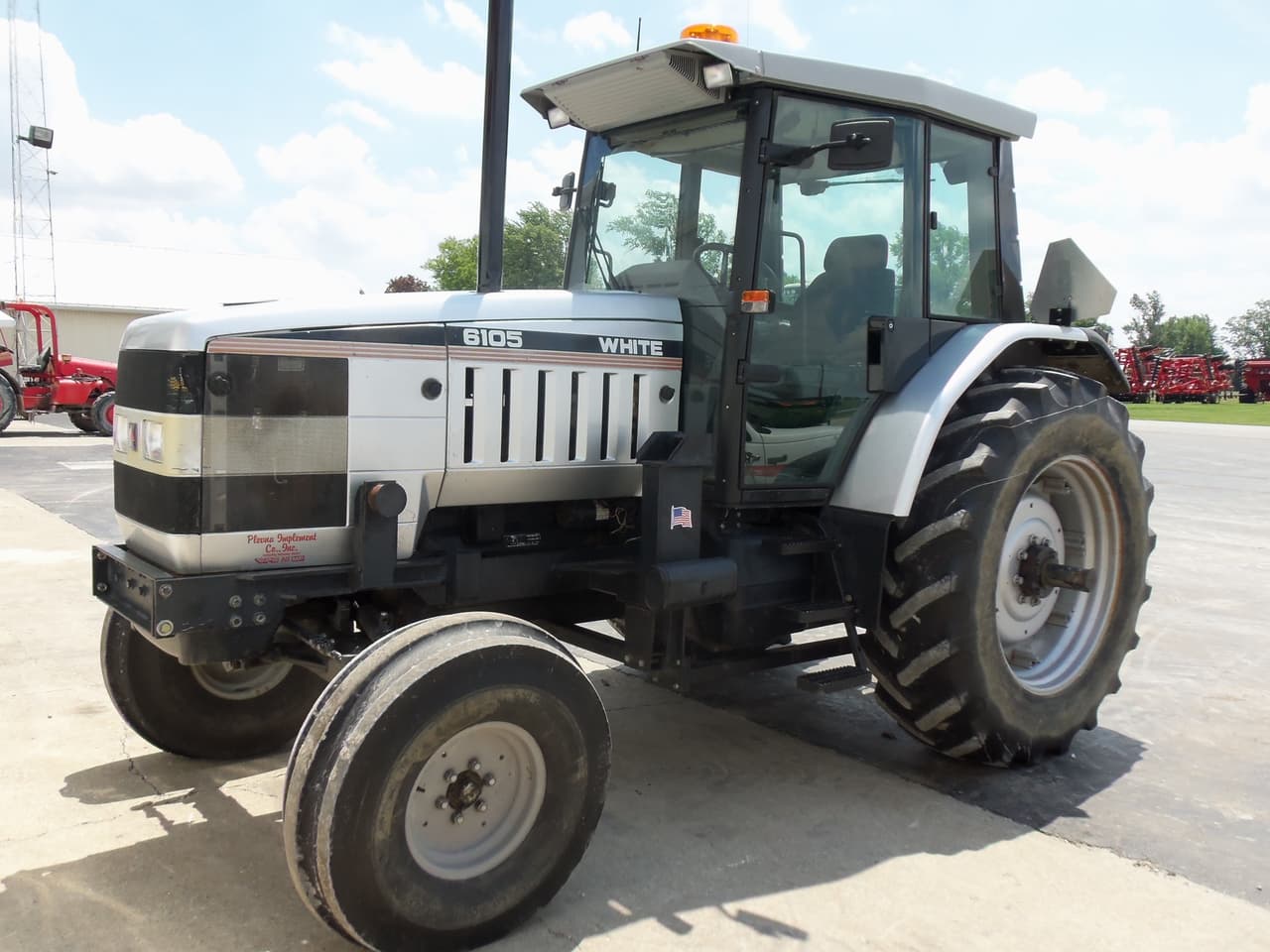

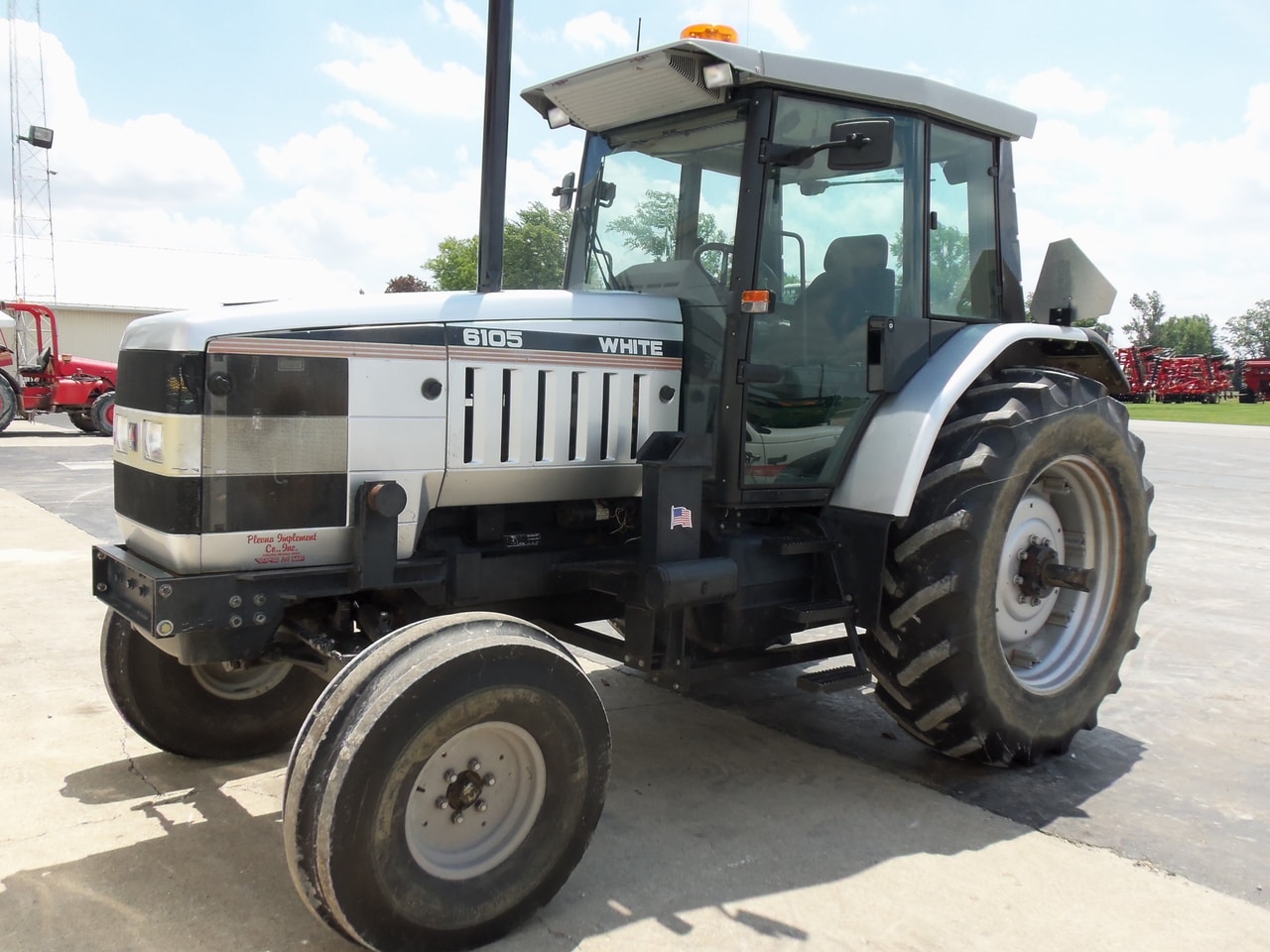

White 6105

Last Updated: June 2024

Overview

The White 6105 is a utility tractor that comes with a two-wheel drive (2WD) chassis and standard power steering for ease of operation. It's powered by a SAME SLH 1000.6-W diesel engine with a displacement of 366 cubic inches, utilizing a liquid-cooling system and a direct injection induction type. The tractor operates with a synchromesh transmission augmented by a two-speed power shift, supporting a total of 36 gear options. Although the power output is not specified, the engine is rated to run at 2500 RPM. This model has an operating weight of 10,830 pounds and measures 159.1 inches in length, 98 inches in width, and has an overall height of 108.5 inches with the cab. It comes equipped with an electric starter and open center hydraulics system but further details on the PTO and brakes are not provided. These specifications are designed to help owners understand the functionality and capabilities of their White 6105 utility tractor, with its dual classification hitch system and spacious cab environment providing a level of comfort and adaptability for diverse agricultural tasks.
Show more...

Key Specifications

Category: Utility

Transmission: synchromesh with two-speed power shift

Drive Type: 2WD

Operating Weight: 10830

Fuel Type: diesel

White 6105 vs. Similar Tractors

Operating Weight
Average
Greater than 64% of similar tractors.

Technical Specifications

Engine

Manufacturer
SAME
Model
SLH 1000.6-W
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
diesel
Induction Type
direct injection
Cylinders
6
Displacement (ci)
366
Bore (in)
4.14
Stroke (in)
4.55
Rated RPM
2500
Power Output (hp)
-

Transmission

Type
synchromesh with two-speed power shift
Forward Gears
-
Reverse Gears
-
Total Gears
36

Dimensions

Length (in)
159.1
Width (in)
98
Height (in)
108.5
Operating Weight (lb)
10830

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
II/I
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
cab
Starter Type
electric
Brake Type
-
Hydraulic System Type
open center
