White 4-270

Last Updated: June 2024

Overview

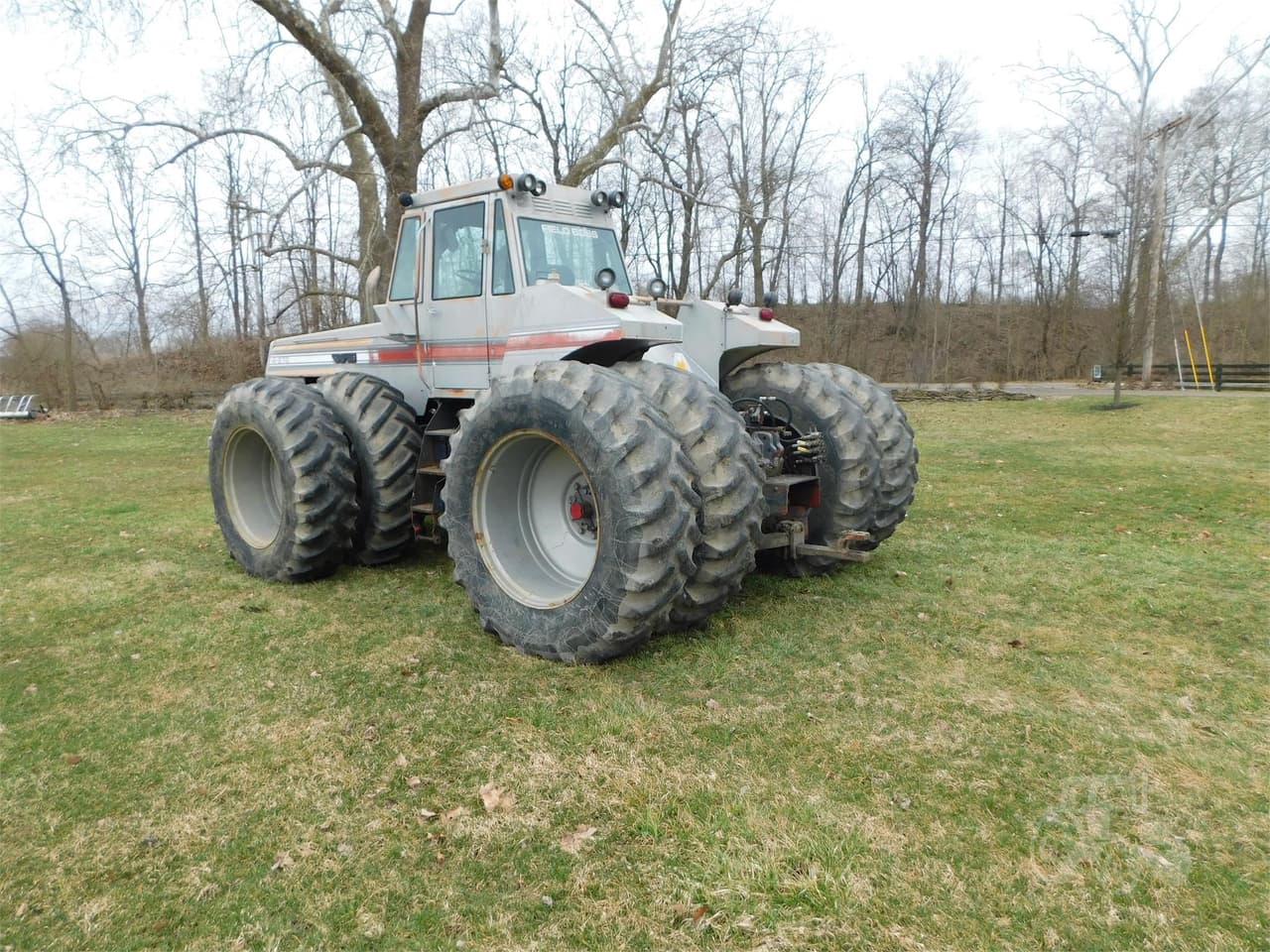

The White 4-270 is a large articulated 4-wheel drive tractor designed for heavy-duty farm and fieldwork. It is powered by a powerful Caterpillar 3306 DITA turbocharged intercooled diesel engine that delivers 270 horsepower, making it suitable for a wide range of demanding agricultural tasks. The cooling system relies on liquid-cooling to manage engine temperature, which is critical for the tractor's large 638 cubic inches displacement engine. The 4-270 features a partial power shift transmission with 16 forward and 4 reverse gears, enabling smooth control and adaptation to varying work conditions. The tractor's sturdy design is complemented by large 18.4-inch-wide tires, both front and rear, which can be either 38 or 42 inches in diameter, providing significant traction and stability. This model comes with a well-equipped cab that offers necessary protections for the operator, and it employs an articulated power steering system to manage its notable length of 273 inches and a weight of over 30,000 pounds. With an adequate hydraulic system and an electrical system charged by a 12-volt starter, the White 4-270 stands as a capable machine for extensive farming needs.
Show more...

Key Specifications

Category: Utility, Four-Wheel Drive

Power Output: 270

Transmission: partial power shift

Drive Type: 4WD

Operating Weight: 30215

Fuel Type: diesel

White 4-270 vs. Similar Tractors

Power Output
Excellent
Greater than 94% of similar tractors.
Operating Weight
Above Average
Greater than 73% of similar tractors.

Technical Specifications

Engine

Manufacturer
Caterpillar
Model
3306 DITA
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
diesel
Induction Type
turbocharged intercooled
Cylinders
6
Displacement (ci)
638
Bore (in)
4.75
Stroke (in)
6
Rated RPM
2100
Power Output (hp)
270

Transmission

Type
partial power shift
Forward Gears
16
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
273
Width (in)
-
Height (in)
127
Operating Weight (lb)
30215

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 articulated 4WD
Drive Type
4WD
Steering Type
articulated power
Coolant Capacity (qts)
48
Front Tire Diameter (in)
38
Front Tire Width (in)
18.4
Rear Tire Diameter (in)
38
Rear Tire Width (in)
18.4
Front/Rear Rim Diameter (in)
-
Tire Type
ag (agricultural)
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
cab
Starter Type
12 volts
Brake Type
-
Hydraulic System Type
closed center
