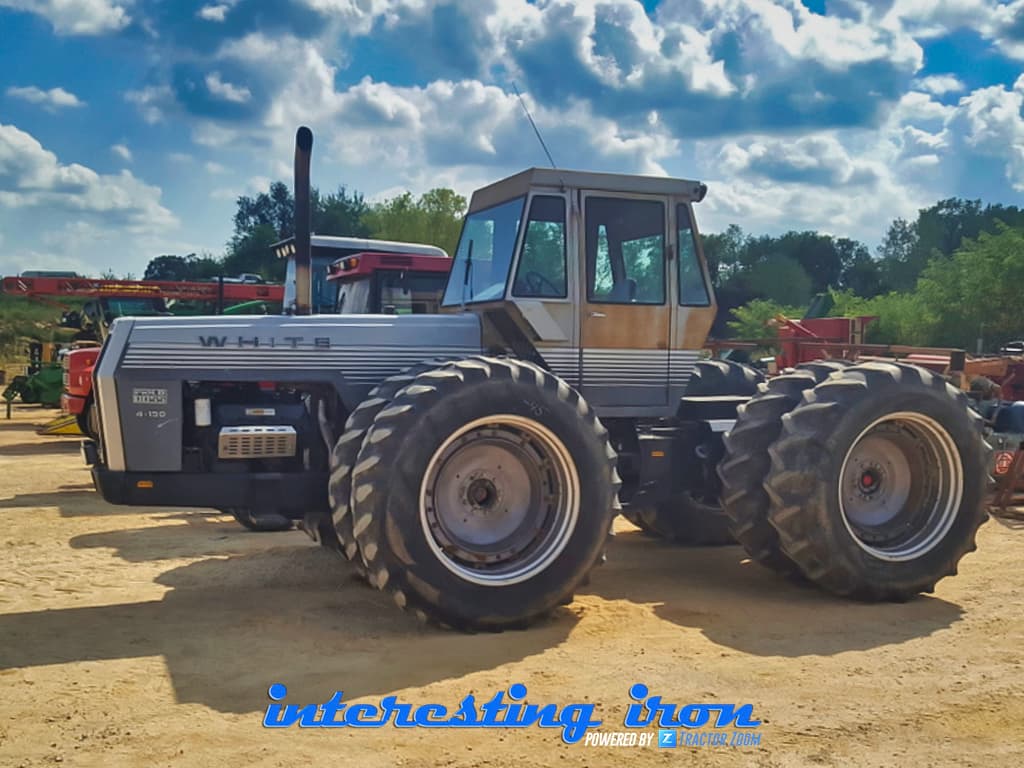

White 4-150 Field Boss

Last Updated: June 2024

Overview

The White 4-150 Field Boss is a large, articulated 4-wheel drive tractor that was manufactured for heavy-duty farming tasks. The tractor is powered by a robust 8-cylinder, 636 ci Caterpillar 3208 diesel engine, ensuring reliable and substantial power for a variety of applications. Its articulated power steering and 18-speed partial powershift transmission facilitate handling and maneuverability, despite its significant operating weight of up to 16,960 lbs. The tire configuration, standard agricultural 18.4-34 both front and rear, supports operation in a range of farm environments, providing good traction and stability. The tractor's dimensions and weight indicate it is designed for substantial tasks and is likely to have been used in large field operations where its power and heft are advantageous. It offers a comfortable operator station with a cab, likely reflecting an emphasis on operator comfort during extended periods of use. Further specifics regarding its capabilities and functionalities, such as PTO speeds and hydraulic system details, would complete the picture for current owners seeking to maximize the use of their White 4-150 Field Boss tractor.
Show more...

Key Specifications

Category: Utility, Four-Wheel Drive

Transmission: Partial powershift

Drive Type: 4WD

Operating Weight: 16960

Fuel Type: Diesel

White 4-150 Field Boss vs. Similar Tractors

Operating Weight
Average
Greater than 69% of similar tractors.

Technical Specifications

Engine

Manufacturer
Caterpillar
Model
3208
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated (assumed from the lack of information regarding turbo/supercharging)
Cylinders
8
Displacement (ci)
636
Bore (in)
4.5
Stroke (in)
5
Rated RPM
2800
Power Output (hp)
-

Transmission

Type
Partial powershift
Forward Gears
18
Reverse Gears
6
Total Gears
-

Dimensions

Length (in)
244
Width (in)
80.6
Height (in)
118 (with cab)
Operating Weight (lb)
16960

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 articulated 4WD
Drive Type
4WD
Steering Type
Articulated power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
34
Front Tire Width (in)
18.4
Rear Tire Diameter (in)
34
Rear Tire Width (in)
18.4
Front/Rear Rim Diameter (in)
Unknown (assuming the same as tire diameter unless otherwise stated)
Tire Type
Agricultural (assuming based on the designation 'Ag front' and 'Ag rear')
Manufacture - End Year
-
Hitch Type
III/II
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab (assuming based on the presence of 'Height (cab)')
Starter Type
Electric (assuming based on the 'Engine - Starter volts')
Brake Type
-
Hydraulic System Type
-
