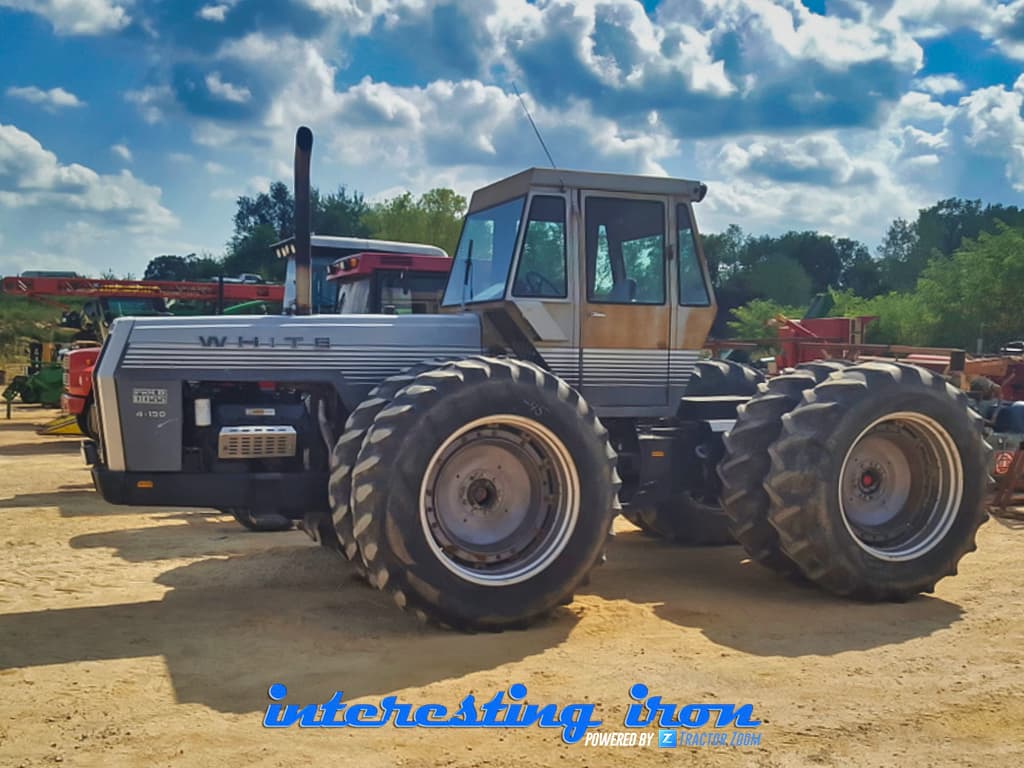

White 4-150

Last Updated: June 2024

Overview

The White 4-150, part of the Field Boss series, was a tractor with a 4x4 articulated 4WD chassis manufactured by White from 1974 to 1978. It hosts a robust Caterpillar 3208 diesel engine, an eight-cylinder unit with a 10.4 L displacement and produces 151.9 HP at 2800 RPM. This tractor is equipped with a partial powershift Hydraul-Shift transmission that offers 18 forward gears and 6 reverse gears, which combined with the tractor's dry disc brakes and articulated power steering, provides versatile and reliable operation. The tractor features a cab standard operator station and is designed to handle a range of agricultural tasks with ease. The tire specifications are agricultural type, but the exact dimensions are not specified in the provided data. Its impressive hydraulic capabilities are indicated by a rear hitch with a lift capacity of 6,000 lbs and categorization for II/III hitches.
Show more...

Key Specifications

Power Output: 151.9

Transmission: Partial powershift

Drive Type: 4WD

Operating Weight: 14502

Fuel Type: Diesel

Lift Capacity: 6000

Technical Specifications

Engine

Manufacturer
Caterpillar
Model
3208
Cooling Type
Liquid-cooled
Cylinder Orientation
V
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural aspirated
Cylinders
8
Displacement (ci)
636
Bore (in)
4.49
Stroke (in)
5
Rated RPM
2800
Power Output (hp)
151.9

Transmission

Type
Partial powershift
Forward Gears
18
Reverse Gears
6
Total Gears
-

Dimensions

Length (in)
243.7
Width (in)
80.3
Height (in)
117.7
Operating Weight (lb)
14502

Power Take-Off (PTO)

PTO Type
Independent
PTO Speed 1 (rpm)
1000
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 articulated 4WD
Drive Type
4WD
Steering Type
Articulated power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
1978
Hitch Type
-
Hitch Category
II/III
Hitch Position
Rear
Hitch Capacity (lb)
6000
Operator Station Type
Cab
Starter Type
Electric
Brake Type
Dry disc
Hydraulic System Type
-
