White 2270

Last Updated: June 2024

Overview

The White 2270 is a model that comes with significant power, delivered through a three-range power shift transmission featuring 18 forward and 6 reverse gears. It is powered by a robust Minneapolis-Moline 6-cylinder engine, which is offered in both diesel and LP-gas variants, though the exact engine model is not specified. This tractor is designed to cater to a range of agricultural needs and comes equipped with a category 3, three-point hitch on the rear. The operational weight listed for this tractor is 17,100 lbs, and the listed dimensions suggest a relatively large and powerful machine suitable for a variety of tasks. As the exact manufacturing dates are unclear, further details on this model's production years are not available.

Key Specifications

Transmission: Three-range Power Shift

Operating Weight: 17,100

Fuel Type: Diesel and LP-gas (Assumption based on engine details provided)

Image Gallery

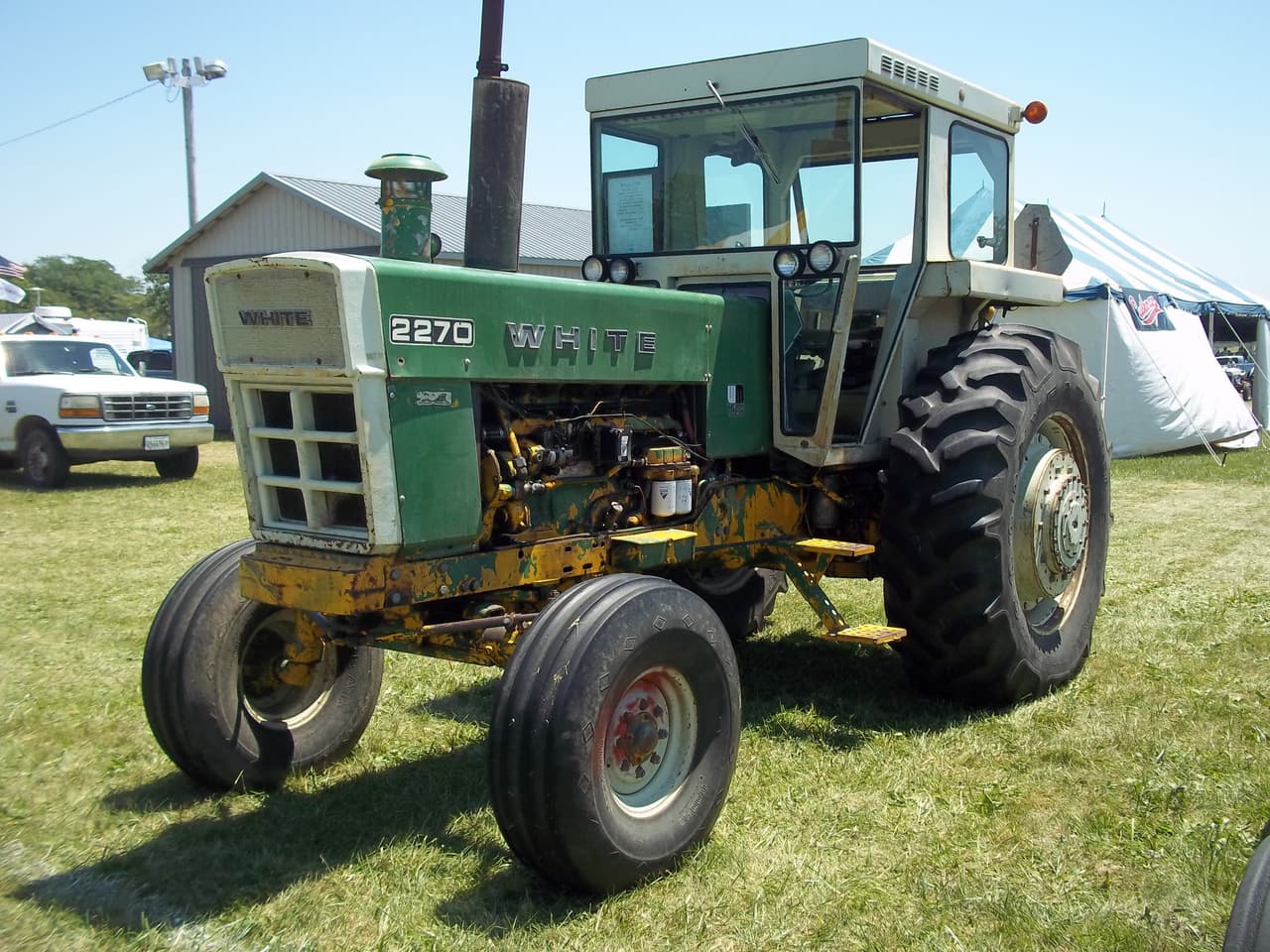

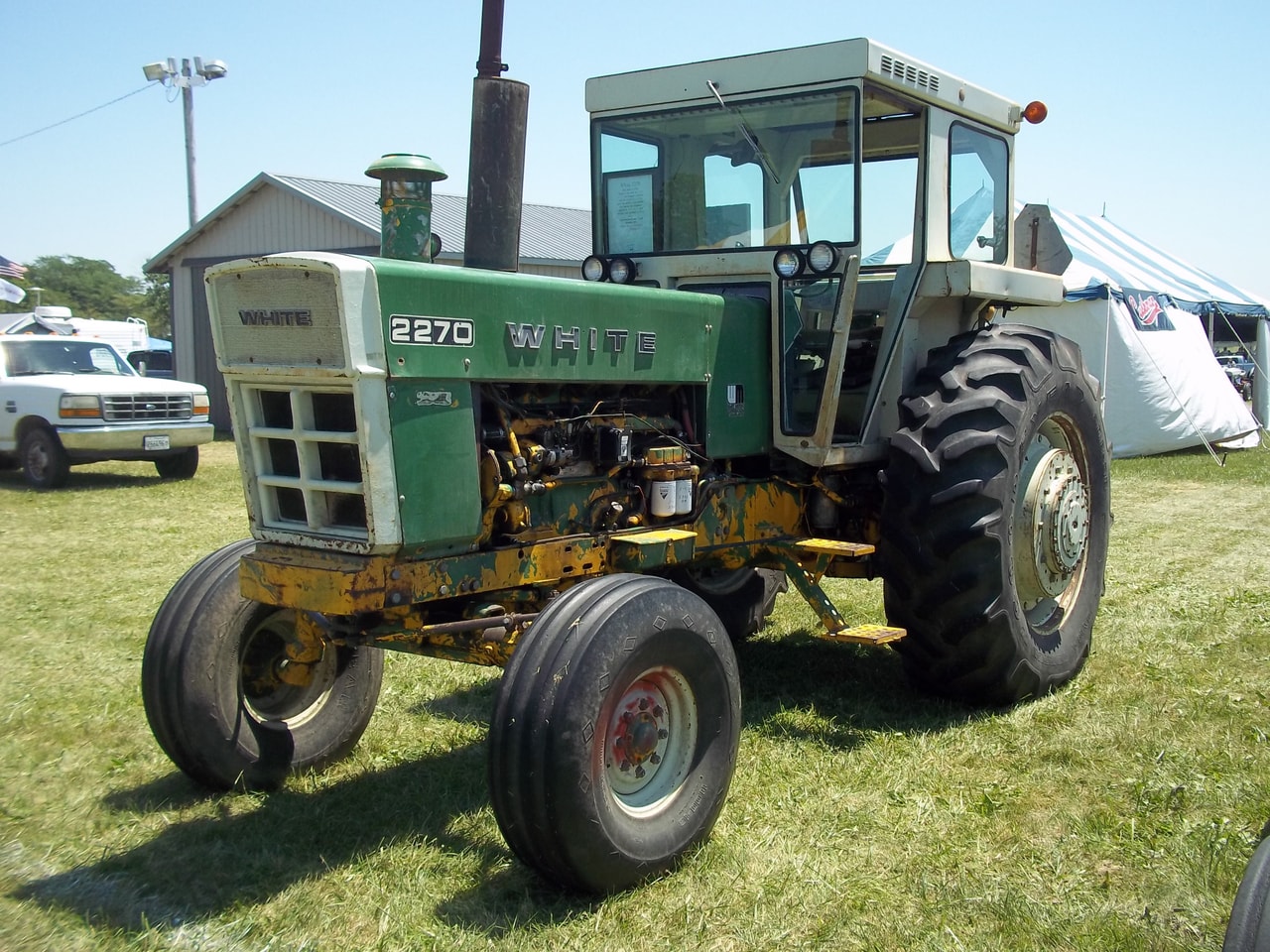

White 2270 Tractor

Technical Specifications

Engine

Manufacturer: Minneapolis-Moline
Model: -
Cooling Type: -
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel and LP-gas (Assumption based on engine details provided)
Induction Type: Naturally Aspirated (Assumption based on lack of any mention of forced induction)
Cylinders: 6
Displacement (ci): 585 and 504 (Conflict in the data provided)
Bore (in): 4.75 and 4.625 (Conflict in the data provided)
Stroke (in): 5.50 and 5.00 (Conflict in the data provided)
Rated RPM: 2200
Power Output (hp): -

Transmission

Type: Three-range Power Shift
Forward Gears: 18
Reverse Gears: 6
Total Gears: -

Dimensions

Length (in): 183
Width (in): 81.5
Height (in): 99 (Assumption based on the tallest height mentioned)
Operating Weight (lb): 17,100

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: -
Coolant Capacity (qts): 33 and 30 (Conflict in the data provided)
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag (Agricultural)
Manufacture - End Year: -
Hitch Type: Three-Point Hitch
Hitch Category: Category 3
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric Starter (Assumption based on starter volts provided)
Brake Type: -
Hydraulic System Type: Closed Center
