White 2-105

Last Updated: June 2024

Overview

The White 2-105 is a 2WD row-crop tractor from the Field Boss series. This tractor was manufactured by White from 1974 to 1982. It features a six-cylinder, turbocharged diesel engine from Perkins with a displacement of 5.8 L and a liquid cooling system. The tractor can come with either a partial powershift transmission with 18 forward and 6 reverse gears or an unsynchronized gear transmission. Notable characteristics include hydrostatic power steering, a three-point hitch (category 2), independent hydraulic wet disc brakes, and an optional cab with heating and air conditioning. The White 2-105 is also equipped with a 12V electric starter system and a closed center hydraulic system.

Key Specifications

Category: Row Crop

Power Output: 105

Transmission: Partial powershift or unsynchronized gear

Drive Type: 2WD

Operating Weight: 11810

Fuel Type: Diesel

Image Gallery

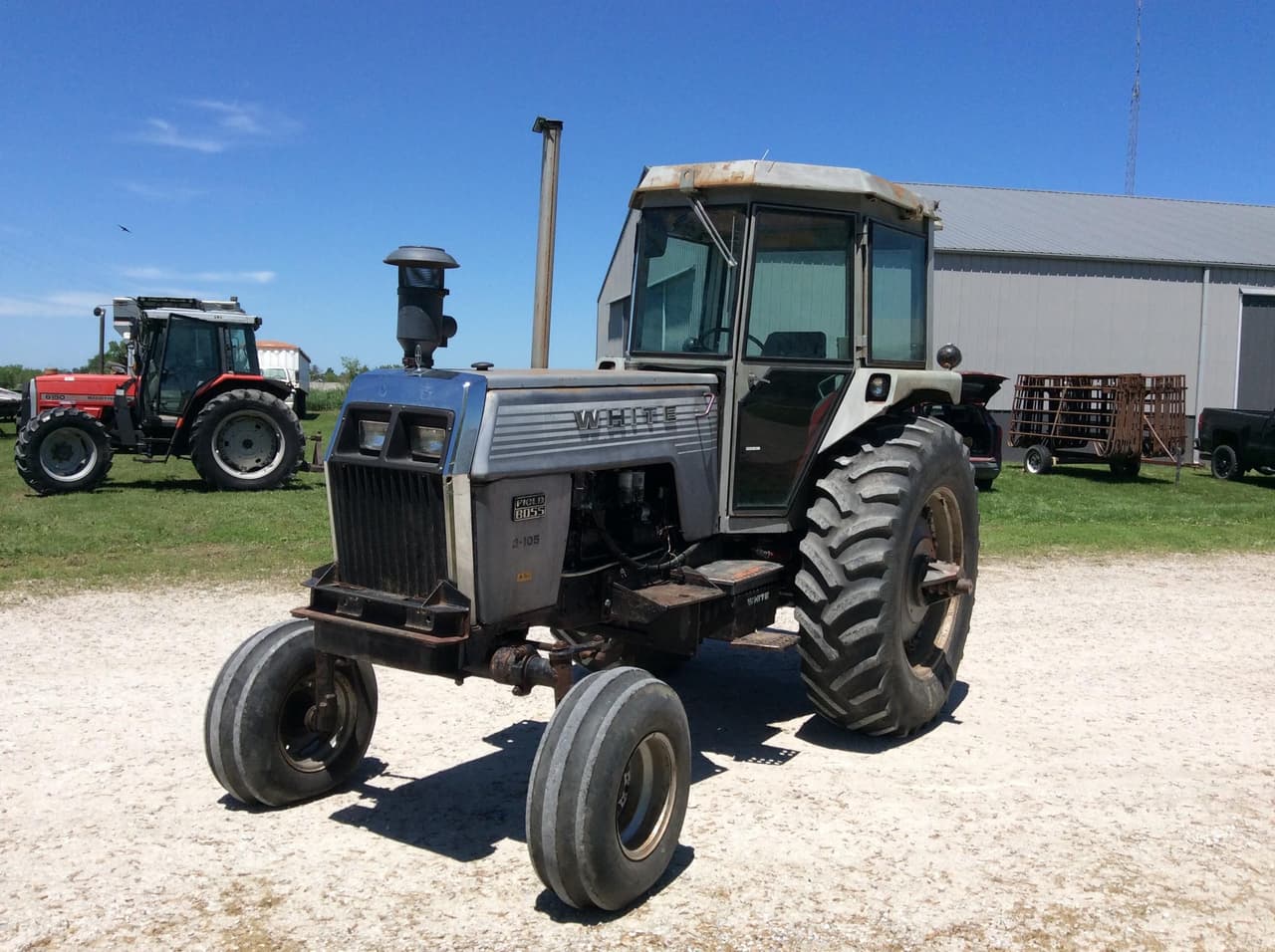

White 2-105 Tractor

White 2-105 vs. Similar Tractors

Power Output

Below Average

Greater than 25% of similar tractors.

Operating Weight

Average

Greater than 45% of similar tractors.

Technical Specifications

Engine

Manufacturer: Perkins
Model: Perkins
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 6
Displacement (ci): 354
Bore (in): 3.86
Stroke (in): 5
Rated RPM: 2200
Power Output (hp): 105

Transmission

Type: Partial powershift or unsynchronized gear
Forward Gears: 18
Reverse Gears: 6
Total Gears: -

Dimensions

Length (in): 178.1
Width (in): 80.6
Height (in): 85.5
Operating Weight (lb): 11810

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 1000
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Hydrostatic power
Coolant Capacity (qts): 24
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: 1982
Hitch Type: Three-Point Hitch
Hitch Category: Category 2
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: Cab optional with heat and A/C
Starter Type: Electric
Brake Type: Independent hydraulic wet disc
Hydraulic System Type: Closed center
