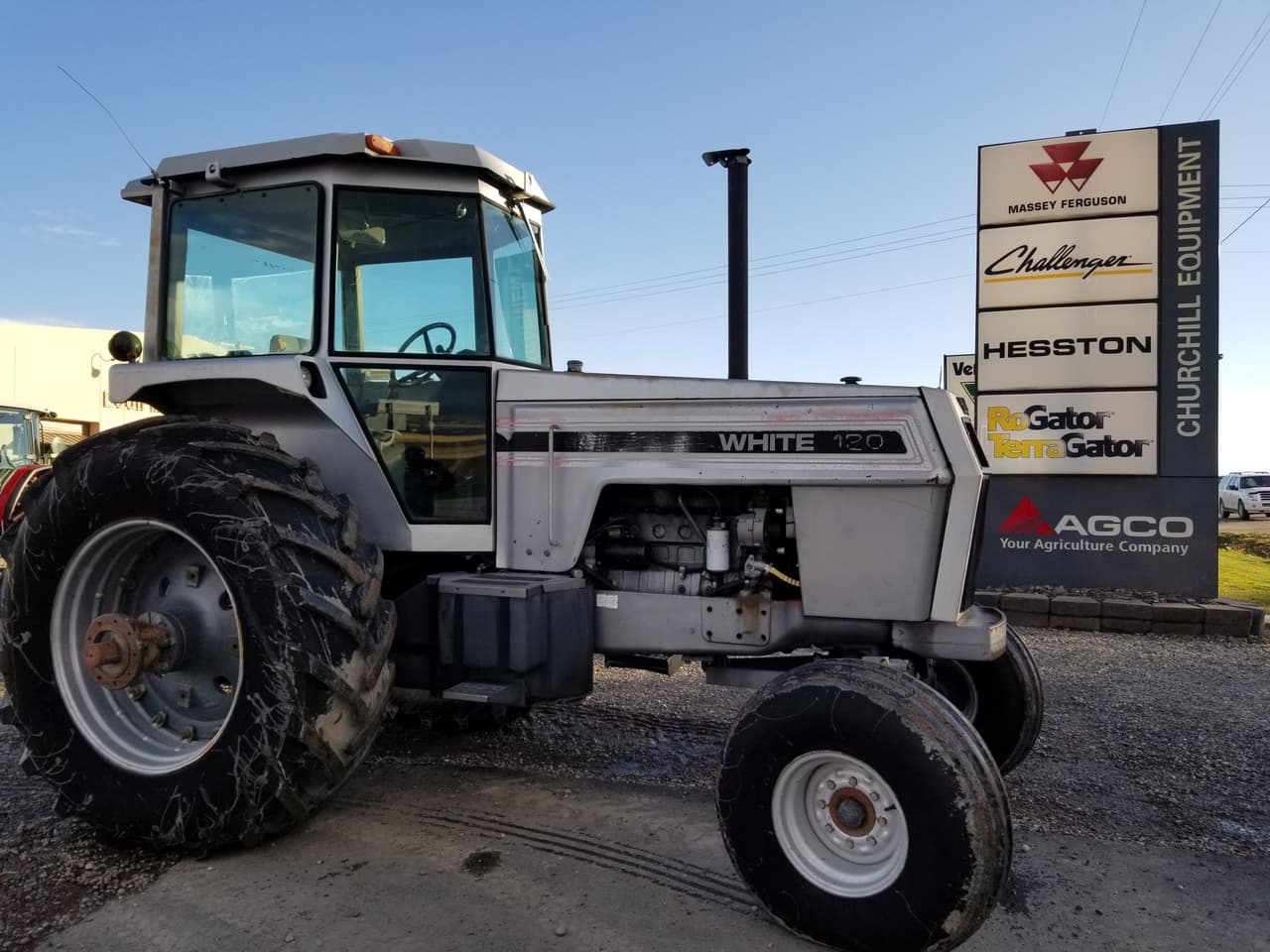

White 120

Last Updated: June 2024

Overview

The White 120 is a row-crop tractor that excels in various farming tasks due to its versatile nature. Featuring a 4x2 2WD chassis, it provides a balance of maneuverability and efficiency for tasks ranging from planting to cultivation. Its robust 359 ci CDC-Cummins turbocharged diesel engine, with an inline cylinder orientation, provides substantial power and durability. The engine's rated RPM stands at 2200, well-suited for the demands of farm work. The tractor's power steering feature ensures ease of control, even during prolonged periods of use. The partial powershift transmission with 18 forward and 6 reverse gears allows for a wide range of speed and torque settings, tailoring the tractor's performance to the task at hand. Although the manufacture start and end years remain unknown, the White 120 remains a testament to the solid engineering of White tractors, designed for reliability and performance in the field.
Show more...

Key Specifications

Category: Row Crop

Transmission: Partial powershift

Drive Type: 2WD

Operating Weight: 14465

Fuel Type: Diesel

White 120 vs. Similar Tractors

Operating Weight
Average
Greater than 58% of similar tractors.

Technical Specifications

Engine

Manufacturer
CDC-Cummins
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
359
Bore (in)
4.016
Stroke (in)
4.724
Rated RPM
2200
Power Output (hp)
-

Transmission

Type
Partial powershift
Forward Gears
18
Reverse Gears
6
Total Gears
-

Dimensions

Length (in)
174
Width (in)
115
Height (in)
117.2 (2WD)
Operating Weight (lb)
14465

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
21
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
III/II
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
12 volts
Brake Type
-
Hydraulic System Type
Closed center pressure compensated
