Wheel Horse D-200

Last Updated: June 2024

Overview

The Wheel Horse D-200 is a 2WD garden tractor from the D series. This tractor was manufactured by Wheel Horse in South Bend, Indiana, USA from 1974 to 1981. The Wheel Horse D200 is equipped with a 0.9 L (53.7 cu·in) two-cylinder gasoline engine and a hydrostatic transmission with infinite forward and reverse gears. The Wheel Horse D-200 garden tractor used the Kohler K532S engine. It is a 0.9 L, 880 cm2, (53.7 cu·in) two-cylinder natural aspirated gasoline engine with 86.0 mm (3.39 in) of the cylinder bore and 76.0 mm (2.99 in) of the piston stroke. This engine produced 20.1 PS (14.9 kW; 20.0 HP) at 3,600 rpm of output power. The Wheel Horse D200 is equipped with manual steering, open operator station, and a 30.3 liters (8 US gal.; 6.7 Imp. gal) fuel tank. Compatible attachments for the Wheel Horse D-200 include a variety of gardening and lawn care implements.

Key Specifications

Category: Lawn and Garden

Power Output: 19.8

Transmission: Hydrostatic

Drive Type: 2WD

Operating Weight: 1,025

Fuel Type: Gasoline

Image Gallery

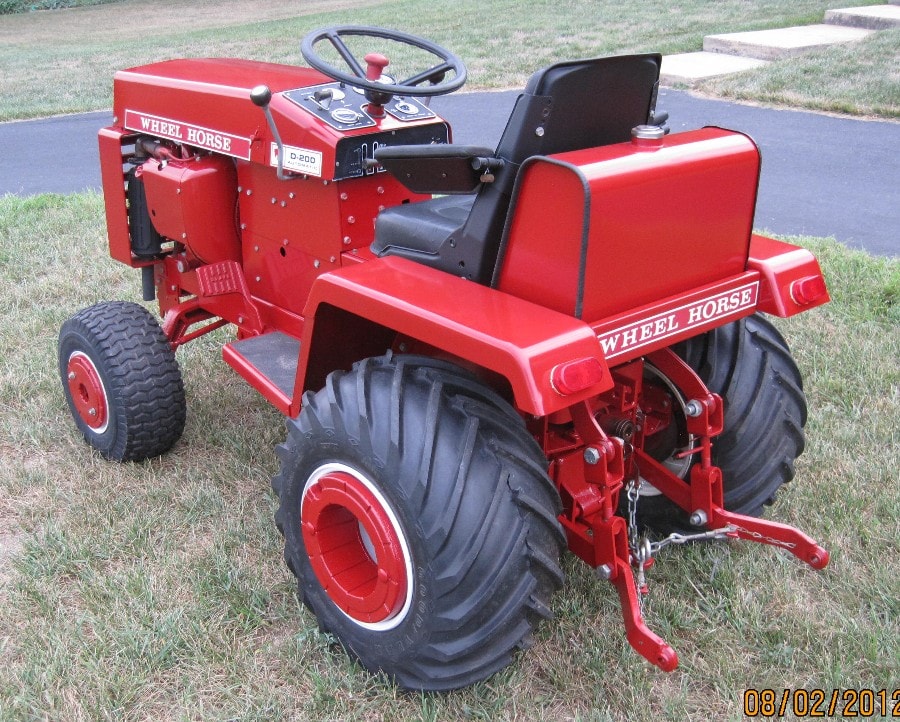

Wheel Horse D-200 Tractor

Wheel Horse D-200 vs. Similar Tractors

Power Output

Average

Greater than 58% of similar tractors.

Operating Weight

Poor

Greater than 0% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kohler
Model: K532S
Cooling Type: Air-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Gasoline
Induction Type: Naturally aspirated
Cylinders: 2
Displacement (ci): 53.7
Bore (in): 3.39
Stroke (in): 2.99
Rated RPM: 3600
Power Output (hp): 19.8

Transmission

Type: Hydrostatic
Forward Gears: Infinite
Reverse Gears: Infinite
Total Gears: -

Dimensions

Length (in): 75.2
Width (in): 44.9
Height (in): 45.3
Operating Weight (lb): 1,025

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Manual
Coolant Capacity (qts): -
Front Tire Diameter (in): 18
Front Tire Width (in): 8.5
Rear Tire Diameter (in): 26
Rear Tire Width (in): 12
Front/Rear Rim Diameter (in): -
Tire Type: Lawn/turf (optional)
Manufacture - End Year: 1981
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Open
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
