Wheel Horse 310-8

Last Updated: June 2024

Overview

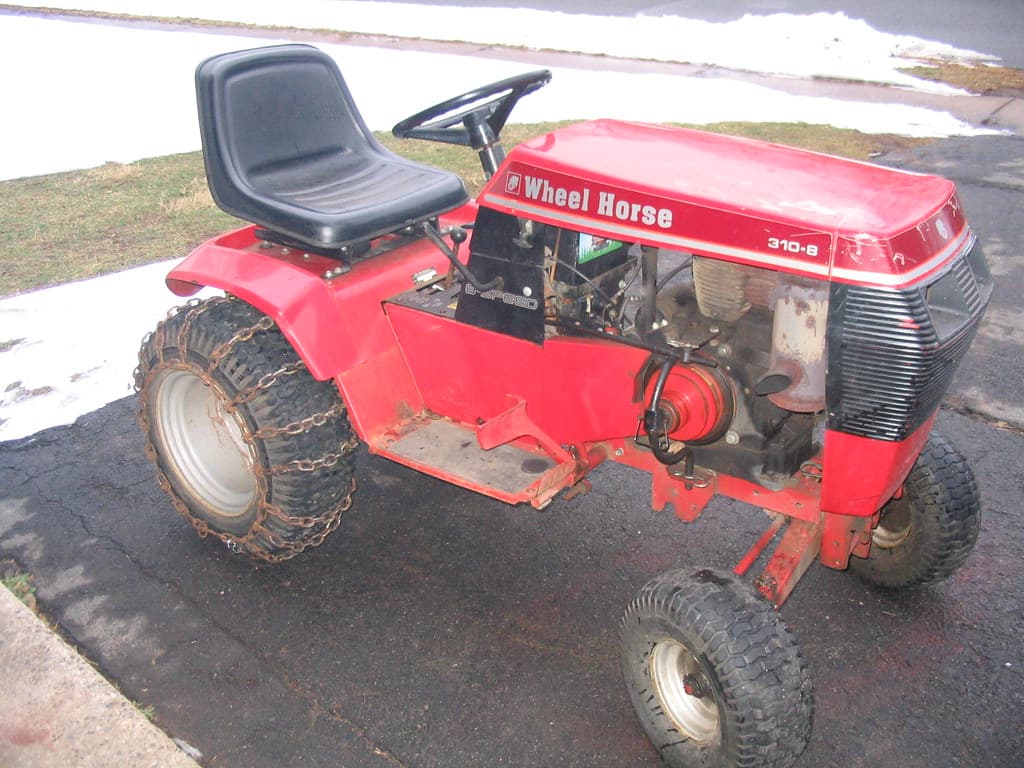

The Wheel Horse 310-8 garden tractor is a durable and reliable machine, built to tackle various gardening tasks. Its 2WD chassis provides easy maneuverability in different lawn conditions. With a manual steering system and an open operator station, it gives a traditional driving experience and allows the operator to handle the tractor efficiently during long working hours. It is powered by a robust single-cylinder Kohler K241S or M10S engine that provides 10 horsepower at 3,600 RPM, perfect for the needs of a garden tractor. Its air-cooled engine ensures steady performance without overheating during extensive use. The tractor features a convenient belt-driven gear transmission with 6 forward and 2 reverse speeds, allowing smooth transition between tasks. Although this model is no longer in production, it remains well-regarded among hobbyists and gardeners for its practicality and the availability of various attachments that enhance its versatility.
Show more...

Key Specifications

Category: Lawn and Garden

Power Output: 10

Transmission: Belt-driven gear

Drive Type: 2WD

Operating Weight: 527

Fuel Type: Gasoline

Wheel Horse 310-8 vs. Similar Tractors

Power Output
Poor
Greater than 10% of similar tractors.
Operating Weight
Average
Greater than 32% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kohler
Model
K241S / M10S
Cooling Type
Air-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Gasoline
Induction Type
Naturally aspirated
Cylinders
1
Displacement (ci)
23.8
Bore (in)
3.27
Stroke (in)
2.87
Rated RPM
3600
Power Output (hp)
10

Transmission

Type
Belt-driven gear
Forward Gears
6
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
65
Width (in)
36.2
Height (in)
40.2
Operating Weight (lb)
527

Power Take-Off (PTO)

PTO Type
Independent with mechanical clutch
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
6
Rear Tire Diameter (in)
-
Rear Tire Width (in)
8.5
Front/Rear Rim Diameter (in)
-
Tire Type
Lawn/turf
Manufacture - End Year
1993
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Open operator station
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
