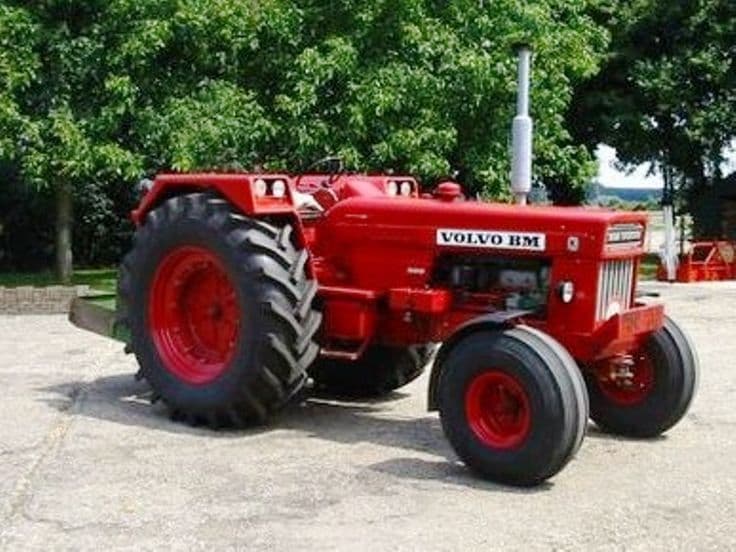

Volvo T800

Last Updated: June 2024

Overview

The Volvo T800 is a classic 4x2 2WD tractor known for its robust design and versatility. Its hydrostatic power steering ensures ease of maneuvering, an important feature for tasks that require precision. The T800's heart lies in its Volvo 6-cylinder diesel engine, which provides 106 horsepower and operates at a rated RPM of 2300. This model shows durability with a strong chassis and an engine displacement of 313 cubic inches. The manual transmission featuring eight forward gears and two reverse gears allows for a range of speeds suited for various agricultural tasks. Measuring 156 inches long, 84 inches wide, and with a height of 101.1 inches, the T800 offers a sizeable profile suitable for a variety of applications, while the 9900-pound operating weight reflects its sturdy build. Large agricultural tires are fitted to the tractor, with 7.50-inch wide front tires and 18.4-inch wide rear tires, supporting the machine’s substantial frame and providing good traction in a variety of soil conditions.
Show more...

Key Specifications

Power Output: 106

Transmission: Manual

Drive Type: 2WD

Operating Weight: 9900

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Volvo
Model
-
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
6
Displacement (ci)
313
Bore (in)
3.75
Stroke (in)
4.724
Rated RPM
2300
Power Output (hp)
106

Transmission

Type
Manual
Forward Gears
8
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
156
Width (in)
84
Height (in)
101.1
Operating Weight (lb)
9900

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2
Drive Type
2WD
Steering Type
Hydrostatic Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
18
Front Tire Width (in)
7.5
Rear Tire Diameter (in)
34
Rear Tire Width (in)
18.4
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
