Volvo T425 Krabat

Last Updated: June 2024

Overview

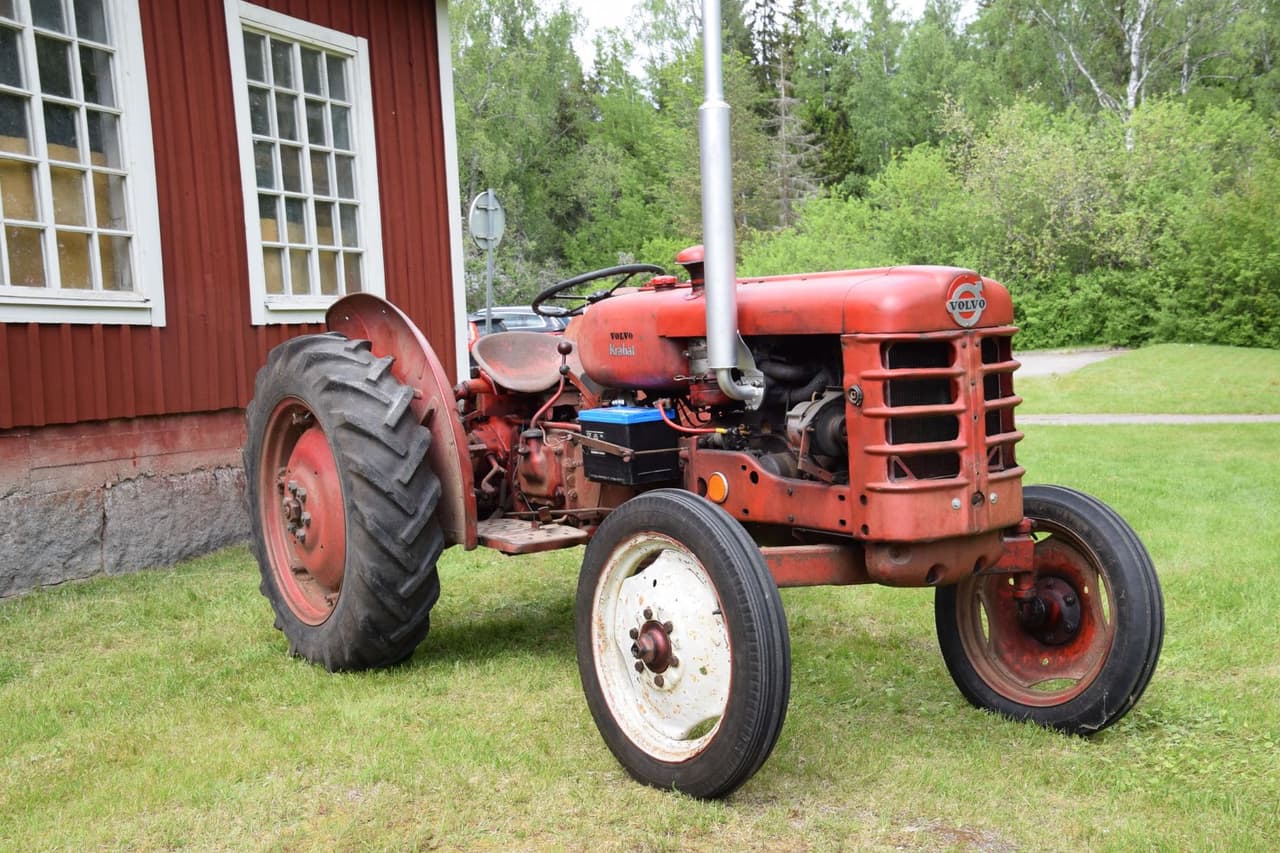

The Volvo T425 Krabat is a utility tractor powered by a 32 horsepower Volvo B16C gasoline engine. It has a liquid-cooling system and features a 4-cylinder engine with a displacement of 97.6 cubic inches. The tractor operates at a rated RPM of 2000 but can reach 2500 RPM during road travel courtesy of a foot accelerator pedal—an uncommon feature. This model utilizes a dry disc clutch with gear transmission offering four forward and one reverse gear. It is equipped with a rear PTO rated at 540 rpm suitable for a variety of implements. The tractor has a considerable operational weight of 2976 lbs and maintains dimensions conducive to versatility on the farm including a length of 116.9 inches, a width of 66.9 inches, and an exhaust height of 77.2 inches. Detailing on the wheelbase, ground clearance, and tire sizes further extend the T425 Krabat's capabilities in various terrains and working conditions. Its suitability for different agricultural tasks makes it a practical choice for many farming operations.
Show more...

Key Specifications

Category: Utility

Power Output: 32

Transmission: Gear

Operating Weight: 2976

Fuel Type: Gasoline

Volvo T425 Krabat vs. Similar Tractors

Power Output
Below Average
Greater than 27% of similar tractors.
Operating Weight
Below Average
Greater than 25% of similar tractors.

Technical Specifications

Engine

Manufacturer
Volvo
Model
B16C
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Gasoline
Induction Type
Naturally Aspirated
Cylinders
4
Displacement (ci)
97.6
Bore (in)
3.12
Stroke (in)
3.15
Rated RPM
2000
Power Output (hp)
32

Transmission

Type
Gear
Forward Gears
4
Reverse Gears
1
Total Gears
-

Dimensions

Length (in)
116.9
Width (in)
66.9
Height (in)
77.2
Operating Weight (lb)
2976

Power Take-Off (PTO)

PTO Type
Rear
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
8.5
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric Starter
Brake Type
-
Hydraulic System Type
-
