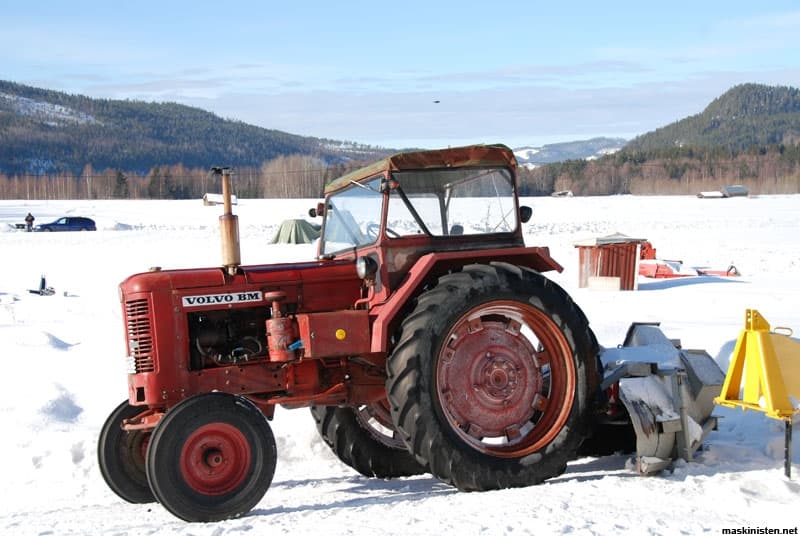

Volvo T36

Last Updated: June 2024

Overview

The Volvo T36 is a classic tractor, primarily identifiable by its robust diesel engine and simple gear transmission. Equipped with a Bolinder 1053 three-cylinder engine, this tractor offers a power output of 41.9 horsepower with a displacement of 205 cubic inches, indicative of the heavy-duty work it can handle. Operating at a peak rated RPM of 1800, its liquid cooling system ensures the tractor maintains optimal performance during strenuous agricultural tasks. The transmission system features 5 forward gears and 1 reverse, which, paired with its 5424-pound weight, offers the necessary traction and control required for varied farming operations. This tractor's dimensions are functional for a range of worksites, with a length of 124 inches, a width of 66.9 inches, and a height of 85.8 inches. Its substantial wheelbase of 79.1 inches contributes to stability, particularly when navigating uneven terrain. With a clear emphasis on utility, the Volvo T36 demonstrates an effective combination of traditional design and enduring capability, suitable for a diverse array of tasks within the agricultural sphere.
Show more...

Key Specifications

Power Output: 41.9

Transmission: Gear

Operating Weight: 5424

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Bolinder
Model
1053
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
3
Displacement (ci)
205
Bore (in)
4.13
Stroke (in)
5.12
Rated RPM
1800
Power Output (hp)
41.9

Transmission

Type
Gear
Forward Gears
5
Reverse Gears
1
Total Gears
-

Dimensions

Length (in)
124
Width (in)
66.9
Height (in)
85.8
Operating Weight (lb)
5424

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
19
Front Tire Width (in)
-
Rear Tire Diameter (in)
38
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric Starter
Brake Type
-
Hydraulic System Type
-
