Volvo T33

Last Updated: June 2024

Overview

The Volvo T33 is a row-crop tractor that was built with a 4x2 2WD chassis and manual steering. It is powered by a 36 hp (26.8 kW) kerosene Volvo D4F engine. The engine displaces 211.1 cubic inches and is liquid-cooled, with a bore and stroke measuring 3.94x4.33 inches. Additionally, the T33 has a rated RPM of 1500. The tractor's transmission is a 5-speed gear type, with 5 forward and 1 reverse gear. It is designed with a weight of 5027 lbs and has standard wheelbase measurements of 79.1 inches. For dimensions, it spans 124 inches in length, 66.5 inches in width, and stands 85.8 inches tall. Furthermore, the tractor was fitted with 6.00-19 front and unspecified sized rear agricultural tires, with front tread ranging from 50.4 to 67.3 inches and rear tread from 52.8 to 76.4 inches. The ground clearance is 21.1 inches at the front axle and 18.1 inches at the drawbar.

Key Specifications

Category: Row Crop

Power Output: 36

Transmission: Gear

Drive Type: 2WD

Operating Weight: 5027

Fuel Type: Kerosene

Image Gallery

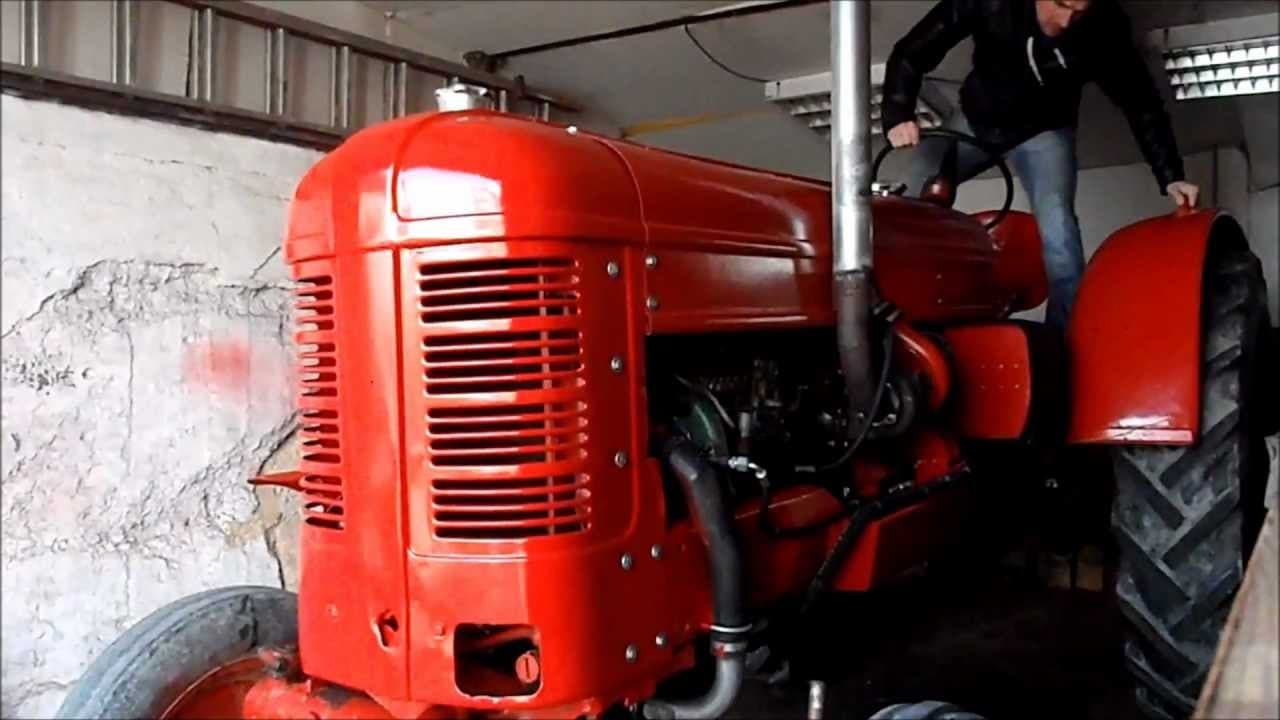

Volvo T33 Tractor

Volvo T33 vs. Similar Tractors

Power Output

Poor

Greater than 3% of similar tractors.

Operating Weight

Below Average

Greater than 21% of similar tractors.

Technical Specifications

Engine

Manufacturer: Volvo
Model: D4F
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Kerosene
Induction Type: Naturally Aspirated
Cylinders: 4
Displacement (ci): 211.1
Bore (in): 3.94
Stroke (in): 4.33
Rated RPM: 1500
Power Output (hp): 36

Transmission

Type: Gear
Forward Gears: 5
Reverse Gears: 1
Total Gears: -

Dimensions

Length (in): 124
Width (in): 66.5
Height (in): 85.8
Operating Weight (lb): 5027

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Manual
Coolant Capacity (qts): -
Front Tire Diameter (in): 19
Front Tire Width (in): 6
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: -
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: 6 Volts
Brake Type: -
Hydraulic System Type: -
