Volvo T320 Buster

Last Updated: June 2024

Overview

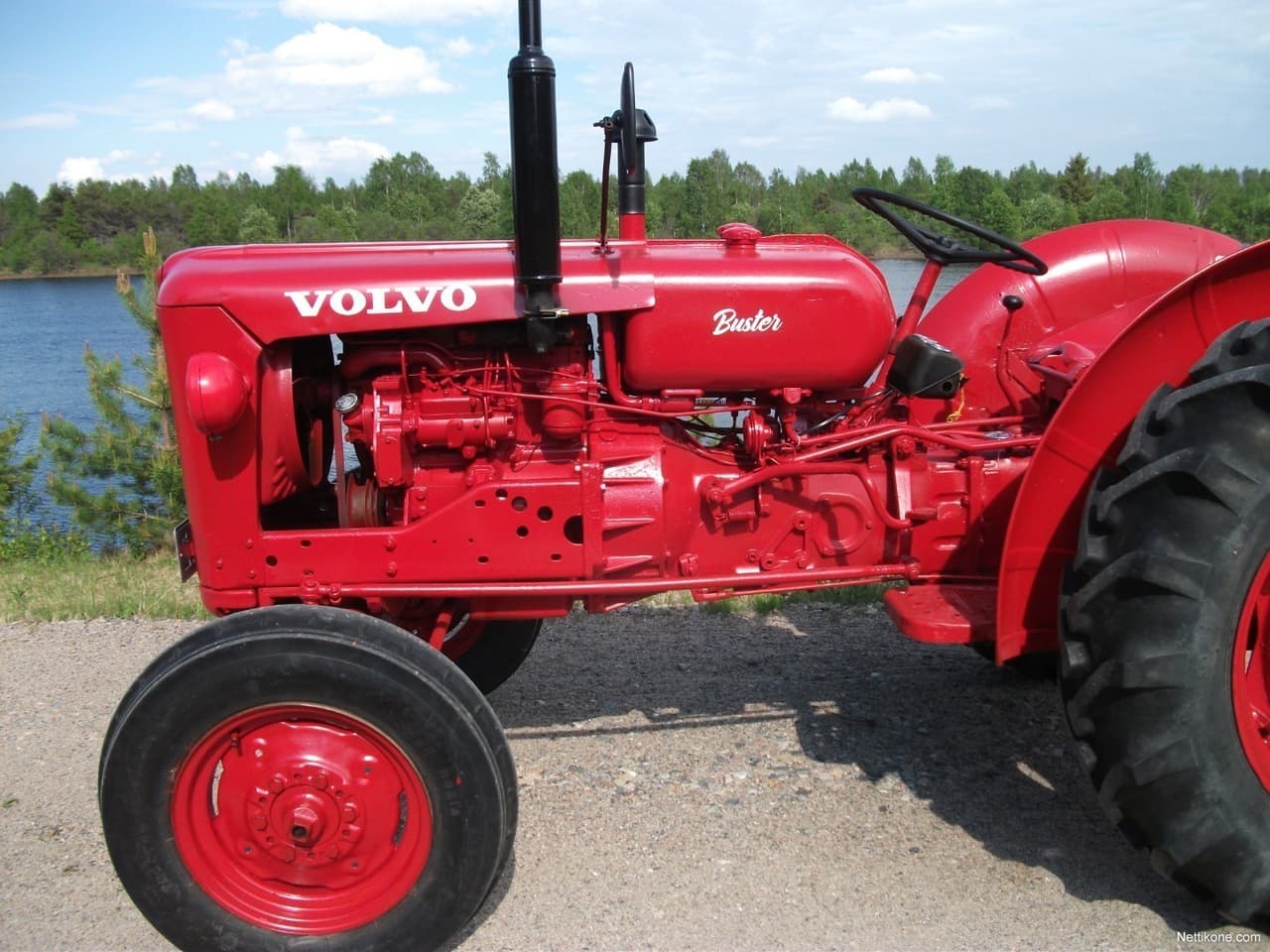

The Volvo T320 Buster is a utility tractor equipped with a choice of two engines; a Perkins 2.5L 3-cylinder diesel and a Volvo 1.8L 4-cylinder gasoline. It provides 37 horsepower, has a gear-type transmission with 5 forward and 1 reverse gear. The tractor has manual steering and a 12-volt electric starting system. The tractor measures 116.1 inches in length, 67.7 inches in width, and has a height of 83.5 inches with an operating weight of 3175 pounds. Its wheelbase is 76.8 inches, indicating a stable platform for a variety of tasks. Specific details about the tractor's farm duties, comfort features, and hydraulic capabilities are not provided, limiting the ability to describe its operational scope completely.
Show more...

Key Specifications

Category: Utility

Power Output: 37

Transmission: Gear

Operating Weight: 3175

Fuel Type: Diesel for Perkins engine, Gasoline for Volvo engine

Image Gallery

Volvo T320 Buster Tractor Volvo T320 Buster Tractor Volvo T320 Buster Tractor Volvo T320 Buster Tractor Volvo T320 Buster Tractor Volvo T320 Buster Tractor Volvo T320 Buster Tractor Volvo T320 Buster Tractor

Volvo T320 Buster vs. Similar Tractors

Power Output
Average
Greater than 33% of similar tractors.
Operating Weight
Below Average
Greater than 27% of similar tractors.

Technical Specifications

Engine

Manufacturer
Assumed to be Volvo due to conflicting data
Model
Perkins 2.5L 3-cyl diesel, Volvo 1.8L 4-cyl gasoline
Cooling Type
Likely liquid-cooled due to coolant capacity listing
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel for Perkins engine, Gasoline for Volvo engine
Induction Type
Naturally aspirated assumed due to lack of turbo/supercharger mention
Cylinders
3 for Perkins, 4 for Volvo
Displacement (ci)
152.55 for Perkins, 108.6 for Volvo
Bore (in)
3.31
Stroke (in)
3.15
Rated RPM
2500
Power Output (hp)
37

Transmission

Type
Gear
Forward Gears
5
Reverse Gears
1
Total Gears
-

Dimensions

Length (in)
116.1
Width (in)
67.7
Height (in)
83.5
Operating Weight (lb)
3175

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
Manual
Coolant Capacity (qts)
8.5
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric (based on starter volts info)
Brake Type
-
Hydraulic System Type
-
