Volvo T25

Last Updated: June 2024

Overview

The Volvo T25 is a utility tractor that was manufactured by Volvo. It comes with a gear transmission system, which includes 5 forward and 1 reverse gear. The tractor is powered by a 30.6 hp, 4-cylinder, gasoline engine that provides solid performance for various tasks. With a liquid-cooling system, the engine maintains a proper temperature during operation. The bore and stroke measurements are 3.44 inches and 3.54 inches respectively, with a displacement of 134.2 cubic inches and an engine rated RPM of 2000. The dimensions of the T25 include a length of 116.1 inches and a width of 51.2 inches. The operating weight is 3461 lbs, indicating a sturdy and durable machine. Details about the precise wheel configuration, steering type, tire types, and hitch system have not been specified in the provided data, rendering them unknown.

Key Specifications

Category: Utility

Power Output: 30.6

Transmission: Gear

Operating Weight: 3461

Fuel Type: Gasoline

Image Gallery

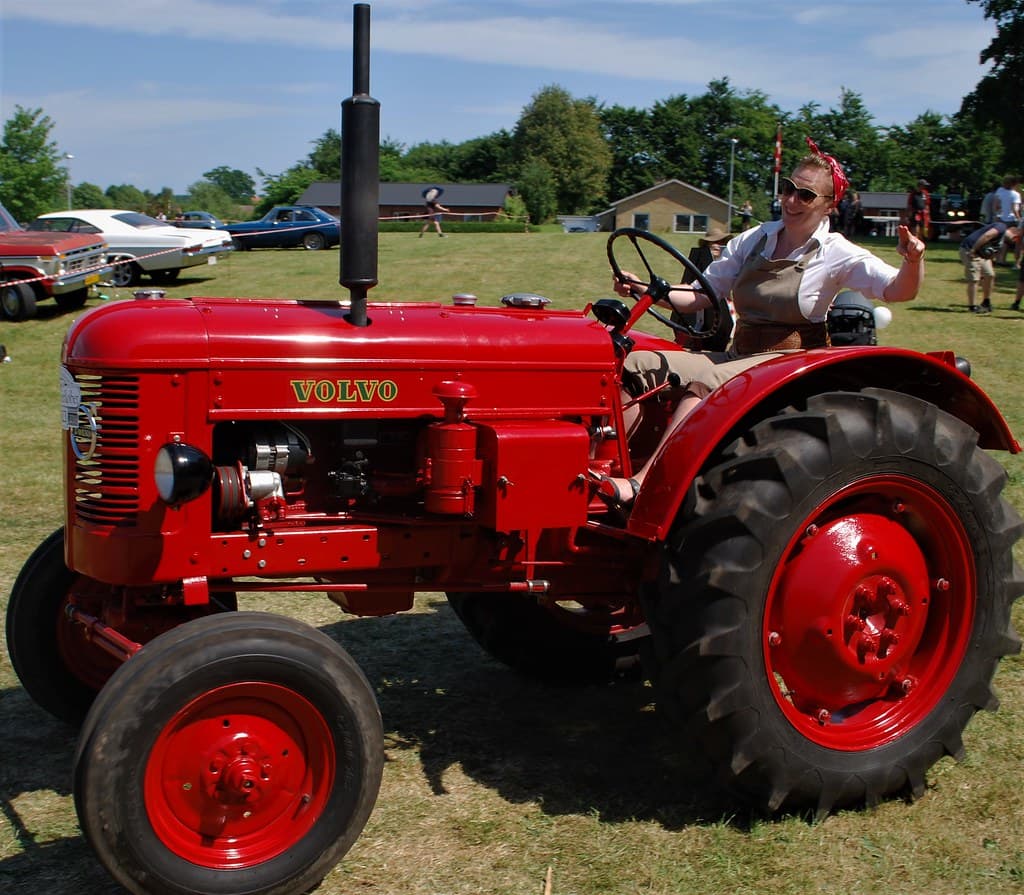

Volvo T25 Tractor

Volvo T25 vs. Similar Tractors

Power Output

Below Average

Greater than 26% of similar tractors.

Operating Weight

Below Average

Greater than 30% of similar tractors.

Technical Specifications

Engine

Manufacturer: Volvo
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Gasoline
Induction Type: Naturally Aspirated (assumed from lack of information about turbocharging or supercharging)
Cylinders: 4
Displacement (ci): 134.2
Bore (in): 3.44
Stroke (in): 3.54
Rated RPM: 2000
Power Output (hp): 30.6

Transmission

Type: Gear
Forward Gears: 5
Reverse Gears: 1
Total Gears: -

Dimensions

Length (in): 116.1
Width (in): 51.2
Height (in): Unknown (Heights for steering wheel, hood, and exhaust are given but not the overall tractor height)
Operating Weight (lb): 3461

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: -
Coolant Capacity (qts): 11.6
Front Tire Diameter (in): Unknown (Front tire spec 5.50-16 does not provide a clear diameter)
Front Tire Width (in): 5.50 (assumed from tire spec 5.50-16)
Rear Tire Diameter (in): Unknown (Rear tire spec "45258" is not in a known tire size format)
Rear Tire Width (in): Unknown (Rear tire spec "45258" does not provide a clear width)
Front/Rear Rim Diameter (in): Unknown (No specific value for rim diameter is given)
Tire Type: -
Manufacture - End Year: -
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric Starter (assumed from "Engine - Starter volts: 6")
Brake Type: -
Hydraulic System Type: -
