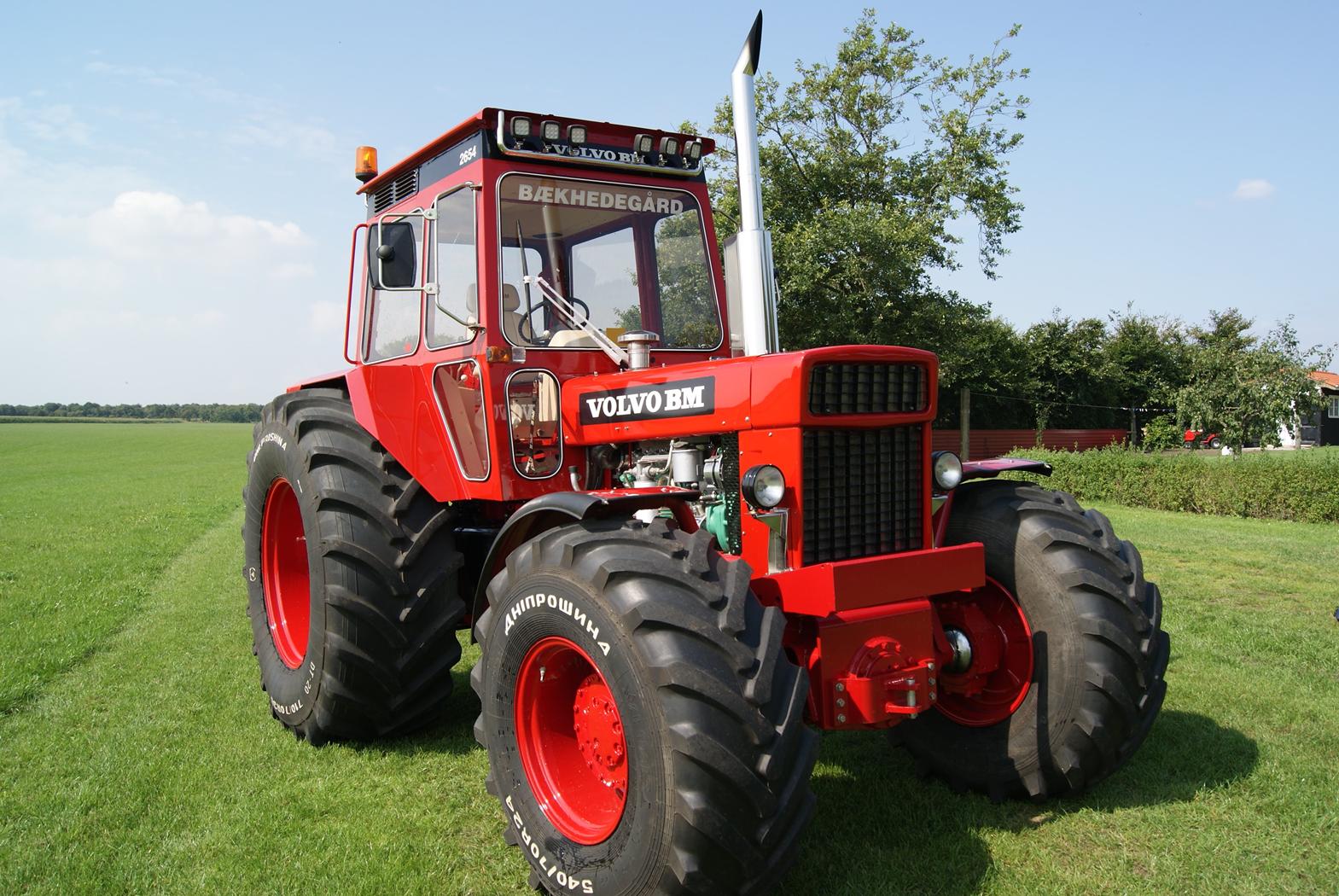

Volvo 2654

Last Updated: June 2024

Overview

The Volvo 2654 is a robust tractor with a Volvo TD60 turbocharged diesel engine boasting a 140 horsepower output, suitable for a variety of demanding agricultural tasks. It operates with a two-speed power shift transmission featuring 14 forward gears and 4 reverse gears, providing the versatility needed for different working conditions. The tractor’s chassis structure is a four-wheel-drive MFWD 4WD configuration, which enhances its capability on various terrains. Supporting its power unit is a cooling system indicated to be liquid-cooled, ensuring engine efficiency and longevity. Pneumatics are traditional agricultural tires, with front dimensions of 14.9x24 inches and rear dimensions of 20.8x38 inches, the latter also available in 18.4-38 inches. Steering is facilitated through a power steering system for easier maneuverability. The tractor's physical dimensions and substantial weight underline its stability and potential for heavier workloads, making it suitable for large-scale agricultural operations. The tractor uses a Category III/II three-point hitch at the rear, and while the lift capacity is unspecified, it would generally match the capability expected of a tractor within this power and weight class. The engine's performance characteristics, including a torque of 357.7 lb-ft at 1600 RPM, support sustained heavy-duty work. The tractor's electrical system includes a 12-volt starter, which is standard in the industry.
Show more...

Key Specifications

Power Output: 140

Transmission: Two-speed power shift

Drive Type: 4WD

Operating Weight: 16535

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Volvo
Model
TD60
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
334.4
Bore (in)
3.87
Stroke (in)
4.72
Rated RPM
2300
Power Output (hp)
140

Transmission

Type
Two-speed power shift
Forward Gears
14
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
183.1
Width (in)
91.7
Height (in)
120.1
Operating Weight (lb)
16535

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
24
Front Tire Width (in)
14.9
Rear Tire Diameter (in)
38
Rear Tire Width (in)
20.8
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
Category III/II
Hitch Category
3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
