Versatile 895

Last Updated: June 2024

Overview

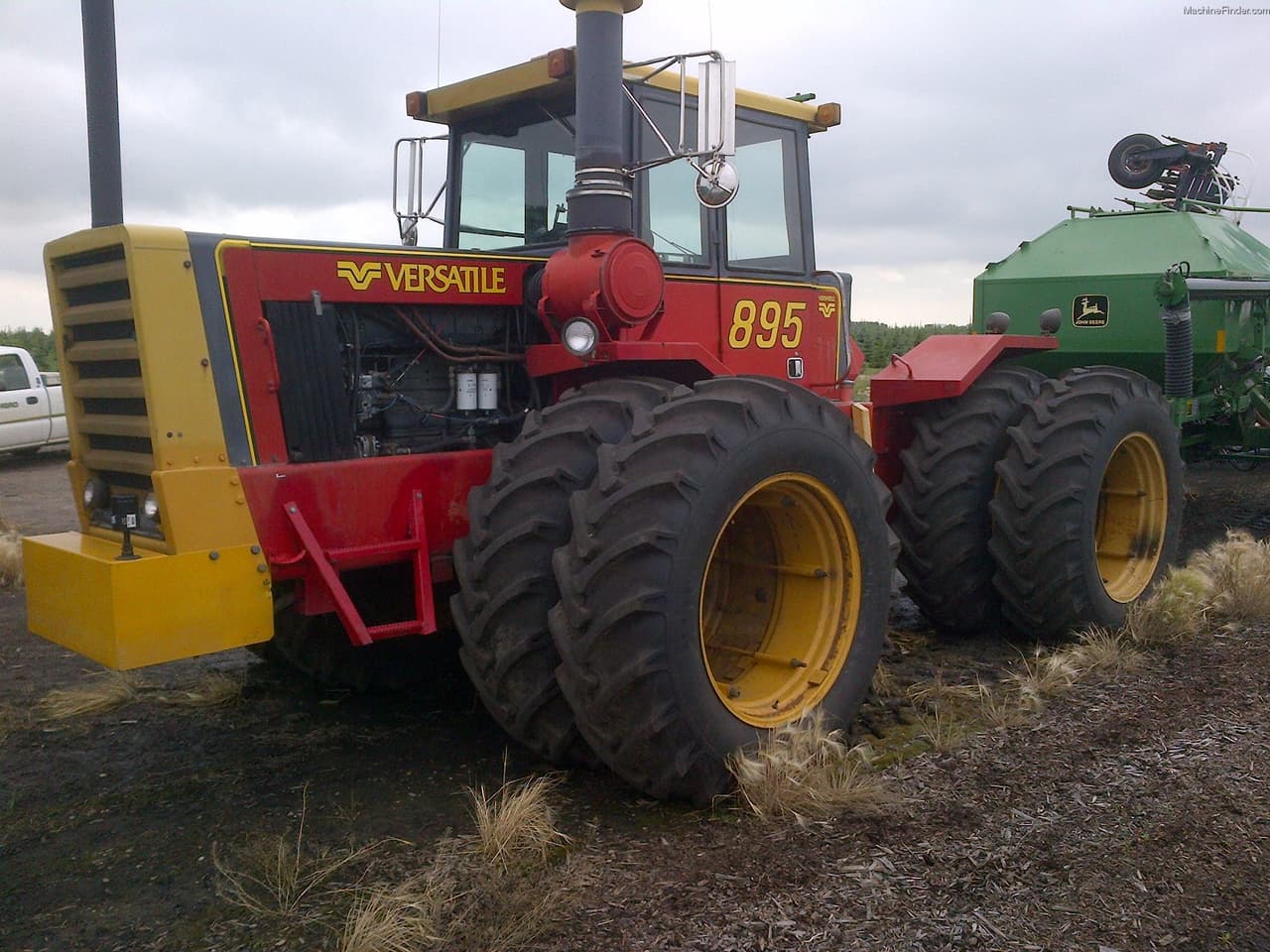

The Versatile 895 is a robust four-wheel drive (4WD) articulated tractor designed for heavy-duty agricultural applications. It sports a Cummins NTA-855-A310 engine, delivering 310 hp with a turbocharged and aftercooled induction system. With an engine displacement of 855 cubic inches, this tractor is well-equipped for demanding tasks requiring a high-torque engine. The gear-driven transmission with 12 forward and 4 reverse speeds offers versatility in a variety of operations. The chassis is an articulated 4x4 4WD layout ensuring optimal power delivery and traction across challenging terrains. Steering is power-assisted and articulated, providing ease of maneuverability despite its substantial operating weight of 24,400 lbs. The 895 model sits on large 24.5-inch agricultural tires, contributing to its strong field presence. The cab-equipped operator station offers protection and comfort for long working hours. With its liquid-cooled engine performance and a substantial front and rear tire setup, the Versatile 895 is designed to perform reliably in a variety of agricultural tasks.
Show more...

Key Specifications

Category: Utility, Four-Wheel Drive

Power Output: 310

Transmission: gear

Drive Type: 4WD

Operating Weight: 24400

Fuel Type: diesel

Versatile 895 vs. Similar Tractors

Power Output
Excellent
Greater than 95% of similar tractors.
Operating Weight
Above Average
Greater than 71% of similar tractors.

Technical Specifications

Engine

Manufacturer
Cummins
Model
NTA-855-A310
Cooling Type
liquid-cooled
Cylinder Orientation
inline
Valve Configuration
-
Fuel Type
diesel
Induction Type
turbocharged aftercooled
Cylinders
6
Displacement (ci)
855
Bore (in)
5.5
Stroke (in)
6
Rated RPM
2100
Power Output (hp)
310

Transmission

Type
gear
Forward Gears
12
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
253
Width (in)
152
Height (in)
126.75
Operating Weight (lb)
24400

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 articulated 4WD
Drive Type
4WD
Steering Type
articulated power
Coolant Capacity (qts)
61
Front Tire Diameter (in)
24.5
Front Tire Width (in)
-
Rear Tire Diameter (in)
24.5
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
electric
Brake Type
-
Hydraulic System Type
open center
