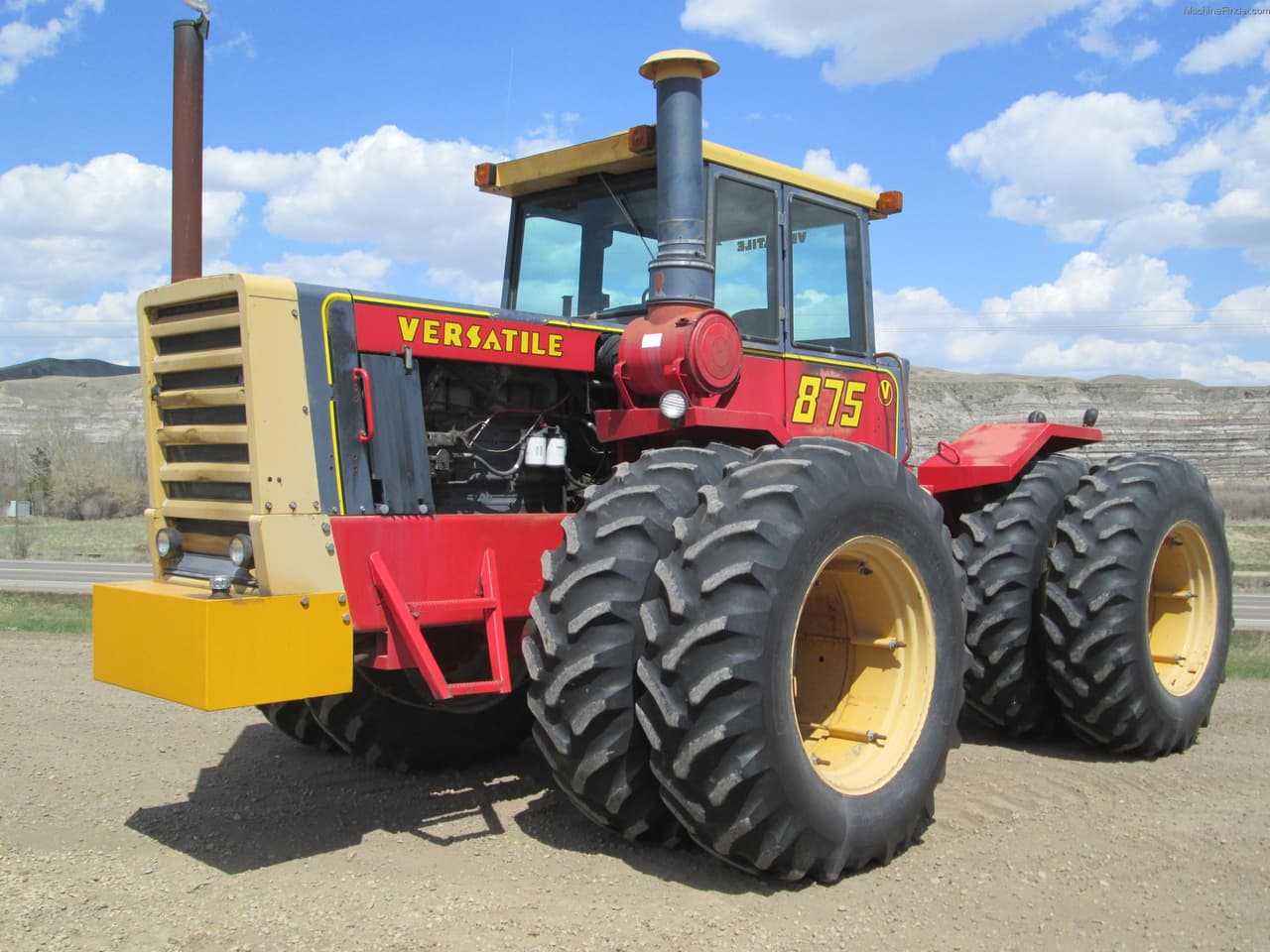

Versatile 875

Last Updated: June 2024

Overview

The Versatile 875 tractor, equipped with a powerful Cummins NT-855-A280 turbocharged diesel engine, is designed for heavy-duty agricultural use. With an engine displacement of 855 cubic inches, it delivers 280 horsepower and impressive torque at 920 lb-ft. This model has a sturdy gear-based transmission offering 12 forward and 4 reverse gears. It operates within a rated RPM range from 2100 at maximum power down to 1000 at idle. The 875 sits on a wheelbase of 130 inches, providing stability and balance during operation. It sports sizable 20.8 inches diameter agricultural front and rear tires which, coupled with its significant operating weight of 25,630 lbs, ensure proper traction in various agricultural conditions. The tractor's dimensions, including a length of 253 inches, a width of 142.7 inches, and a height of 126.75 inches, underscore its substantial presence. Notably, the tractor features an open-center hydraulic system and a category III hitch. However, additional details about the steering type, operator station type, and PTO specifics are not provided.
Show more...

Key Specifications

Power Output: 280

Transmission: Gear

Operating Weight: 25,630

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Cummins
Model
NT-855-A280
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
855
Bore (in)
5.5
Stroke (in)
6
Rated RPM
2100
Power Output (hp)
280

Transmission

Type
Gear
Forward Gears
12
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
253
Width (in)
142.7
Height (in)
126.75
Operating Weight (lb)
25,630

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
47
Front Tire Diameter (in)
20.8
Front Tire Width (in)
-
Rear Tire Diameter (in)
20.8
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
Category 3 (assuming this based on "Rear Type: III Opt")
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Unknown (Assuming "Cab" based on "CEG_Height - Top of Cab")
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
