Versatile 855

Last Updated: June 2024

Overview

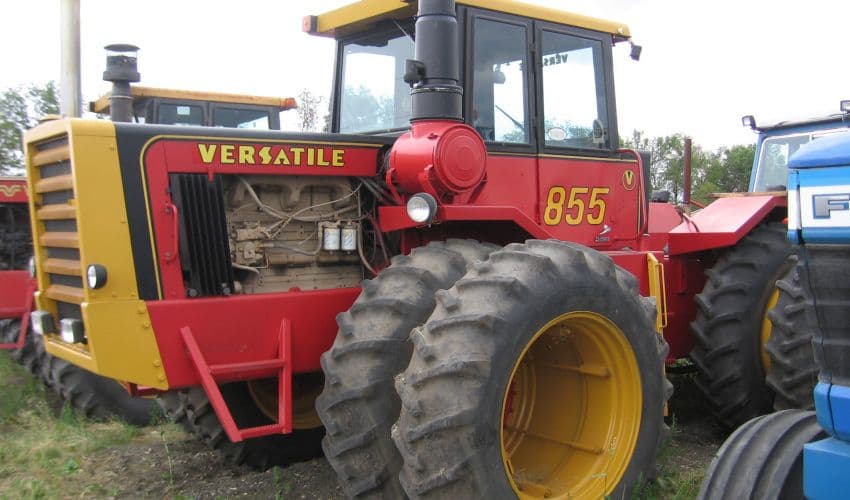

The Versatile 855 is a powerful tractor equipped with a robust Cummins NT-855-C250 turbocharged diesel engine. This 6-cylinder, liquid-cooled engine provides 250 horsepower and offers a large displacement of 855 cubic inches. The tractor features a gear-driven transmission with 12 forward gears and 4 reverse gears, allowing for various speeds and operational flexibility. The large wheelbase of 130 inches contributes to its stability, while the machine's substantial weight of 20,150 lbs ensures traction and stability under heavy loads or in challenging terrain. A three-point hitch at Category 3 is situated at the rear, supporting a variety of implements and attachments. The tractor's cab provides protection and comfort for the operator.
Show more...

Key Specifications

Power Output: 250

Transmission: Gear

Operating Weight: 20,150

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Cummins
Model
NT-855-C250
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
855
Bore (in)
5.5
Stroke (in)
6
Rated RPM
2100
Power Output (hp)
250

Transmission

Type
Gear
Forward Gears
12
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
253
Width (in)
-
Height (in)
126.75
Operating Weight (lb)
20,150

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
47
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
